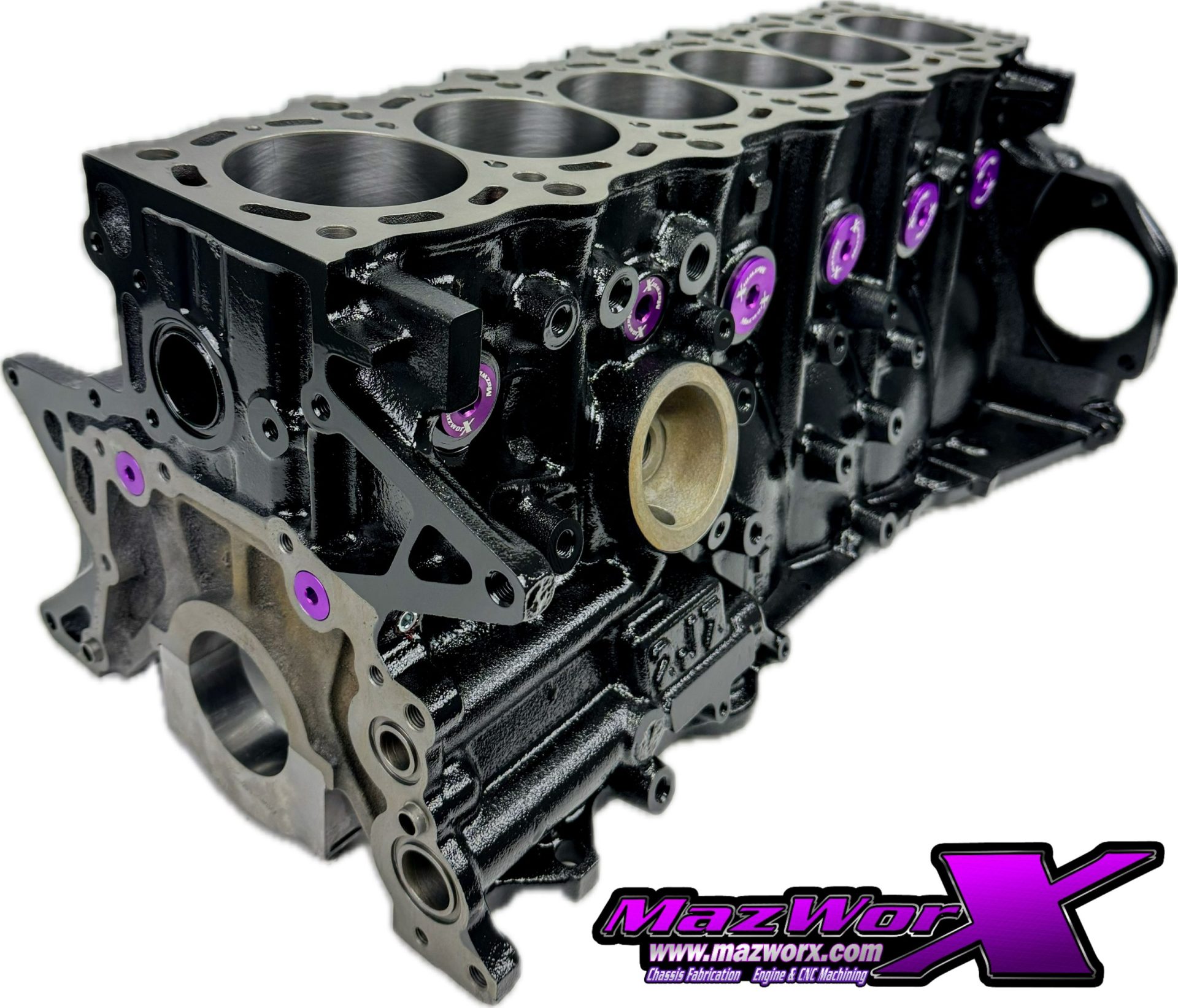

Mazworx 2JZ Block Stage 2

The Mazworx 2JZ Block Stage 2 is a professionally prepped engine block designed for Toyota 2JZ enthusiasts aiming for high-performance builds up to 1200 horsepower. Crafted with precision using advanced CNC machining and state-of-the-art equipment, this package provides thorough preparation suited for DIY engine builders seeking reliability and enhanced performance.

Comprehensive Block Preparation

• Hot Tank Cleaning: The block undergoes a deep wash to remove oil, grime, and contaminants, ensuring a clean foundation for machining.
• Sand Blast and Paint: After cleaning, the block is sand blasted to restore its surface finish and then coated with durable semi-gloss black paint for protection and aesthetics.

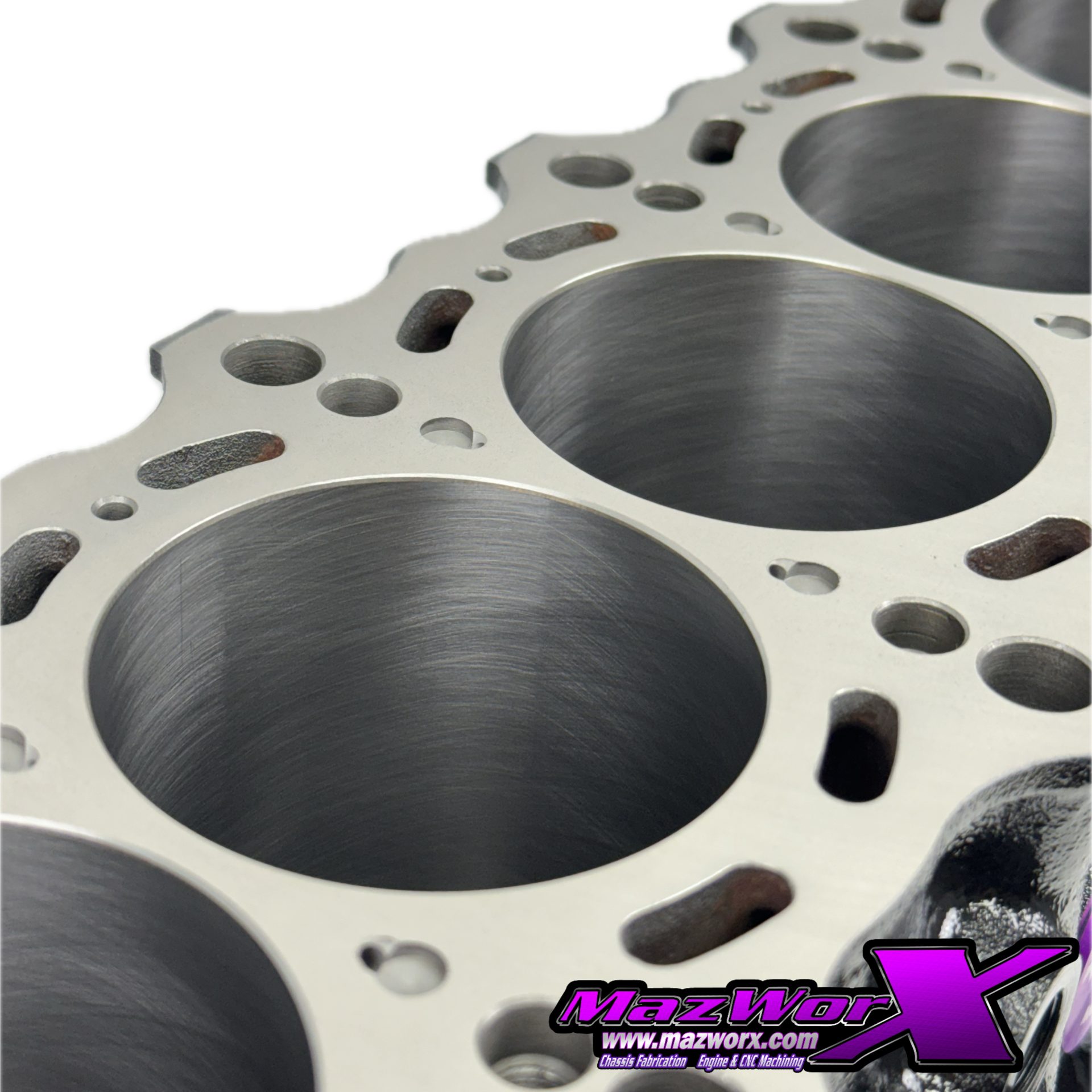

• Precision Boring and Honing: Boring is completed using a 3-axis CNC machine to guarantee centered bores. A Sunnen SV-10 cylinder hone with diamond tooling is then used to achieve exceptional cylinder finish and sizing accuracy.

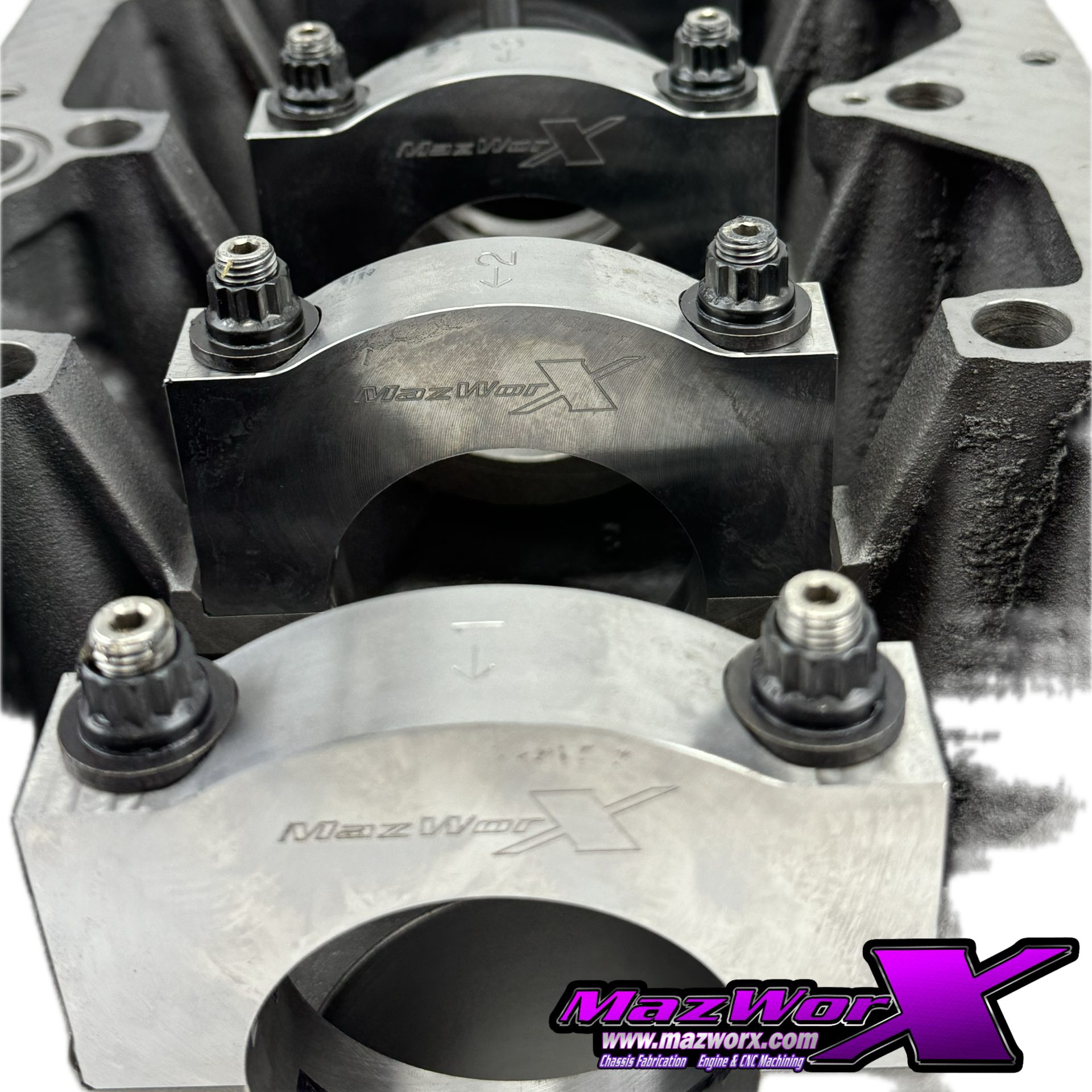

• Main Studs, Caps, and Line Boring: Main caps are carefully ground and line bored using custom tooling to factory specifications. This process is followed by line honing to ensure exact journal sizing and alignment.
• Surface Machining: The deck surface is machined using a coated CBN cutter to provide flatness and smoothness critical for head gasket sealing.
• Threaded O-ring Oil Galley Plugs: Oil port plugs are removed and replaced with CNC-machined threaded plugs featuring O-rings to prevent leaks and allow easy future removal.

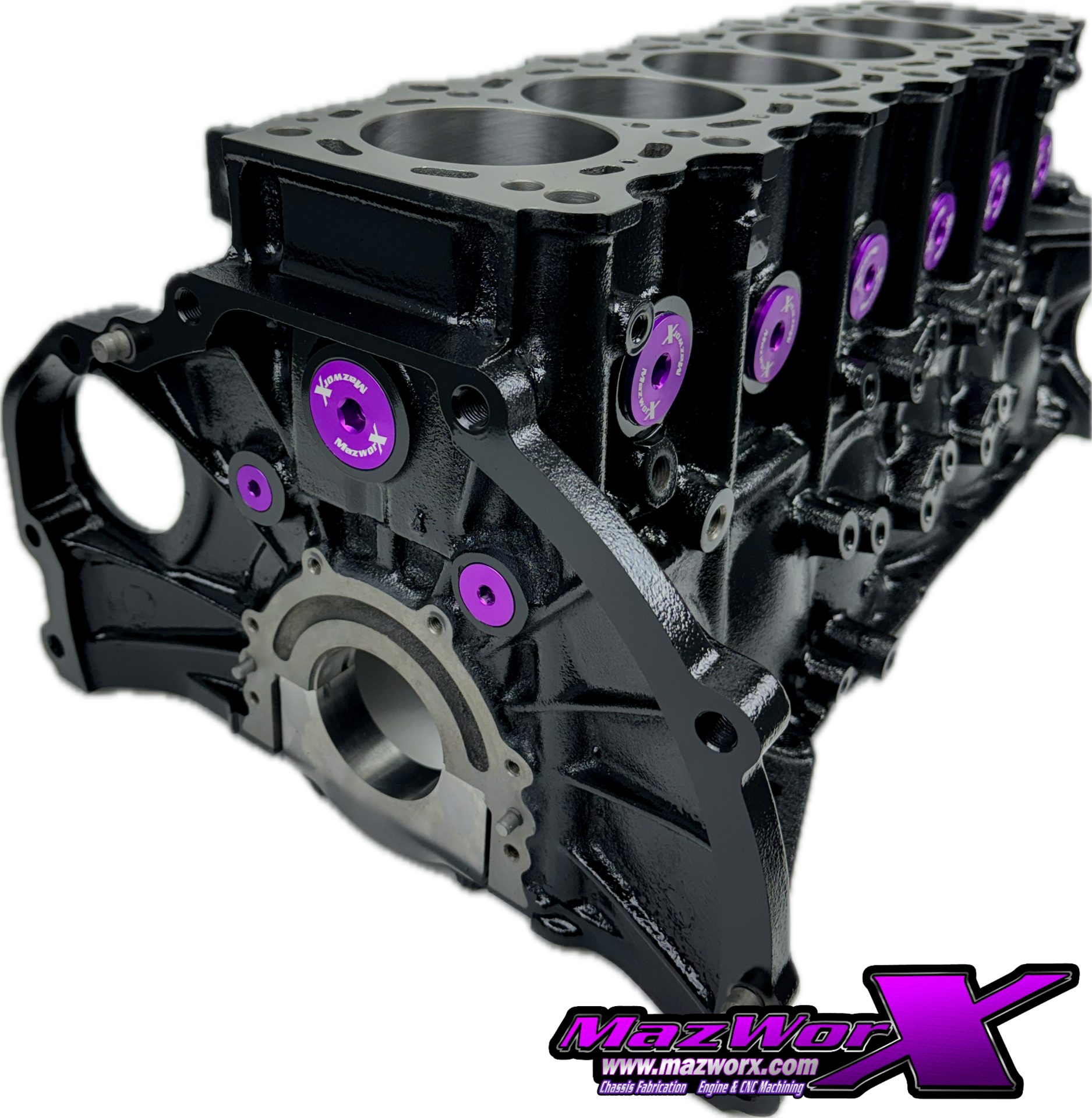

• Threaded O-ring Freeze Plugs: OEM freeze plugs are replaced with custom threaded and O-ringed plugs tailored to resist leaks and withstand high boost pressures.
• Torque Plate Honing: Honing is performed with a custom Mazworx torque plate that simulates cylinder head clamping pressure for accurate cylinder geometry, especially critical when sleeves are installed. This is optional for blocks with stock sleeves.
• GE to GTE Conversion: For those converting a 2JZ-GE block to a GTE variant, machining is done to incorporate oil squirters and turbo oil feed provisions.

Included Components

• Mazworx Threaded O-ring Oil Galley Plugs
• Mazworx Threaded O-ring Freeze Plugs
• Mazworx Billet Main Caps
• ARP Main Studs

This Stage 2 block prep is engineered to provide a solid foundation for building a reliable and high-performance Toyota 2JZ engine, ideal for applications seeking up to 1200 horsepower.

Note: A core block is required for this service. Custom options like CNC rod notch and GE to GTE conversion are available based on your project needs.
