Mazworx 4B11 Sleeved Block Stage 2

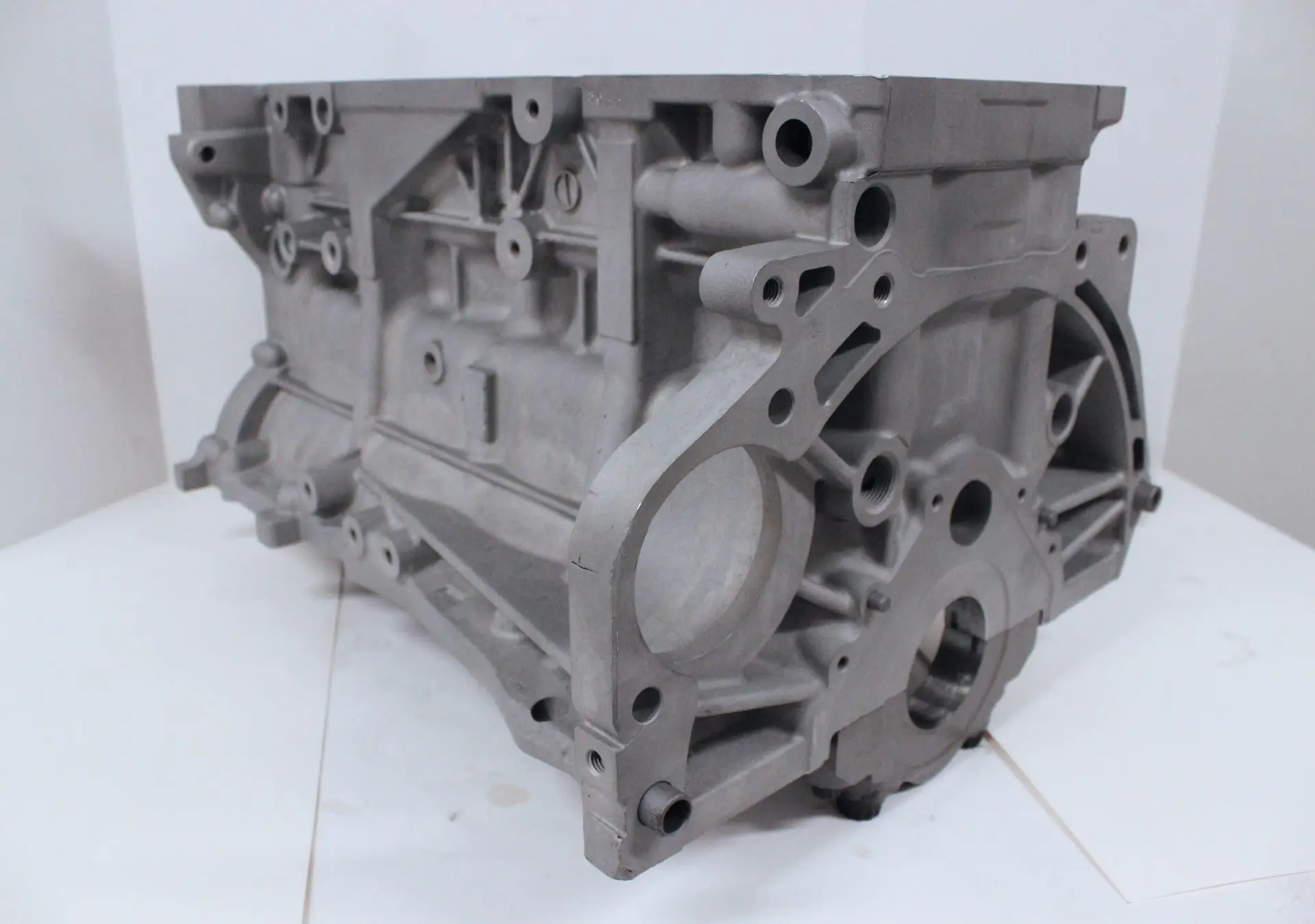

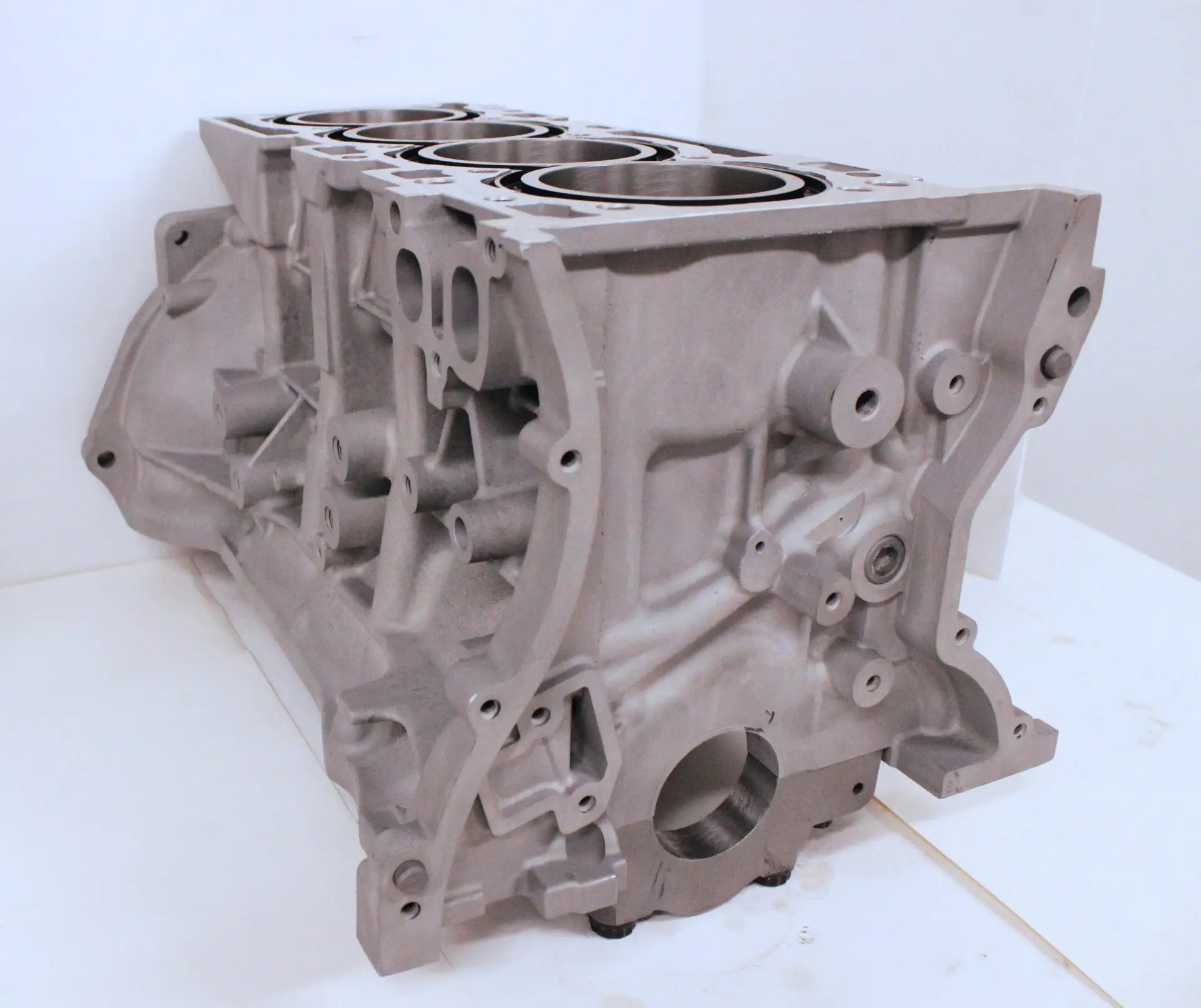

The Mazworx 4B11 Sleeved Block Stage 2 is a meticulously prepared engine block designed specifically for Mitsubishi 4B11 engines. Utilizing advanced CNC machining and precision equipment, this sleeved block is delivered ready-to-assemble, combining durability and performance enhancements suited for high-power applications.

Comprehensive Block Preparation

Starting with your provided core block or a new OEM block (available for purchase), every block undergoes the following detailed process to ensure optimal performance and reliability:

• Hot tank cleaning to remove contaminants and prepare the block surface
• Sand blasting to eliminate corrosion and debris, revealing a uniform satin aluminum finish for improved aesthetics and longevity
• Installation of high-strength Darton MID ductile iron sleeves that offer superior durability, capable of withstanding over 1000hp
• Precision boring and honing with a torque plate on state-of-the-art CNC and Sunnen SV-10 honing machines using diamond tooling for exceptional cylinder finish

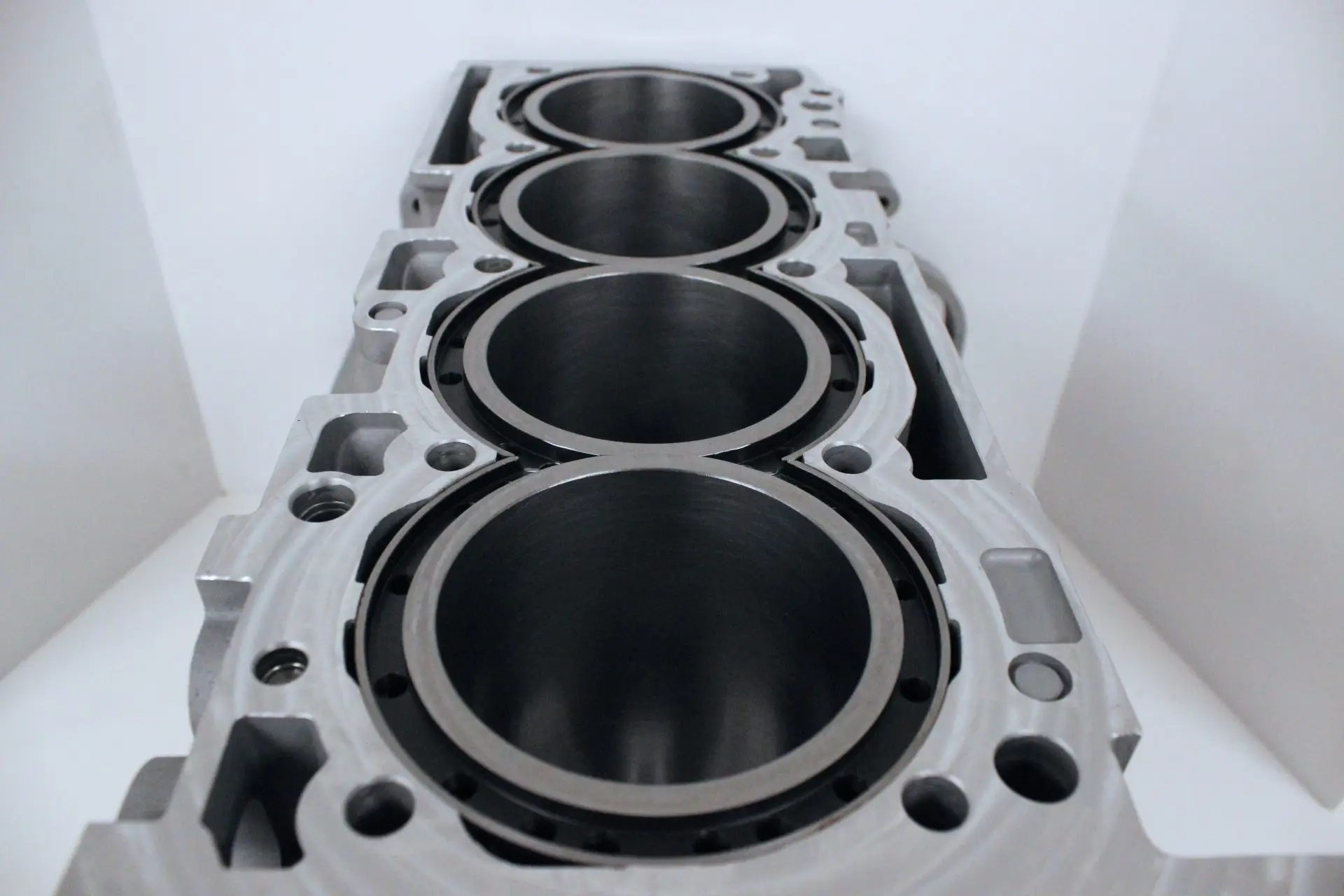

• Step decking the block surface to produce a sleeve height taller than the deck, enhancing clamping force around the sleeves for improved head gasket sealing under high boost conditions

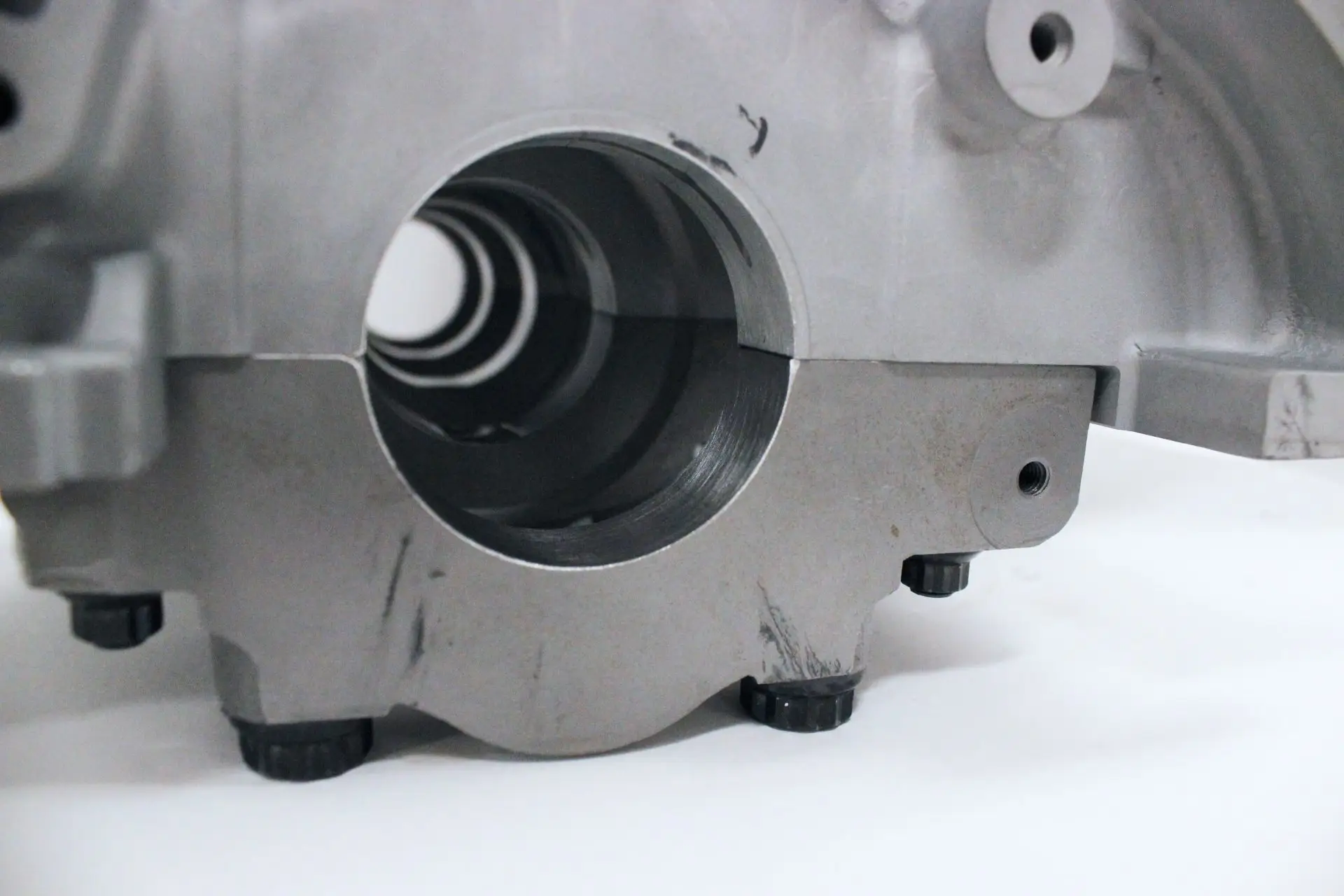

• Line boring to factory specifications, ensuring proper alignment with the integrated girdle design of the block

Included Hardware

• Darton MID Sleeves
• ARP Main Studs
• Miscellaneous plugs

Customization Options

• Core Selection: You may either send in your existing block or purchase a new OEM core block directly. Work commences only after receipt of the core.
• Bore Sizes: Multiple bore options range from 86.0mm to 90.0mm to meet your specific build requirements. For turbocharged setups, we recommend limiting the bore size to 89mm to ensure reliability.

Precision and Durability

The entire machining and assembly process is performed using Mazworx’s three-axis CNC machines, ensuring precise alignment and dimensional consistency. The use of a torque plate during the honing process guarantees that the cylinder bores retain their final shape and size once the head is installed, a critical factor when working with sleeves.

With the inclusion of ARP main studs and thorough line boring, this block is prepared to handle rigorous racing conditions and increased power demands.

The Mazworx 4B11 Sleeved Block Stage 2 offers a reliable foundation for high-performance engine builds requiring enhanced strength, precision, and longevity.
