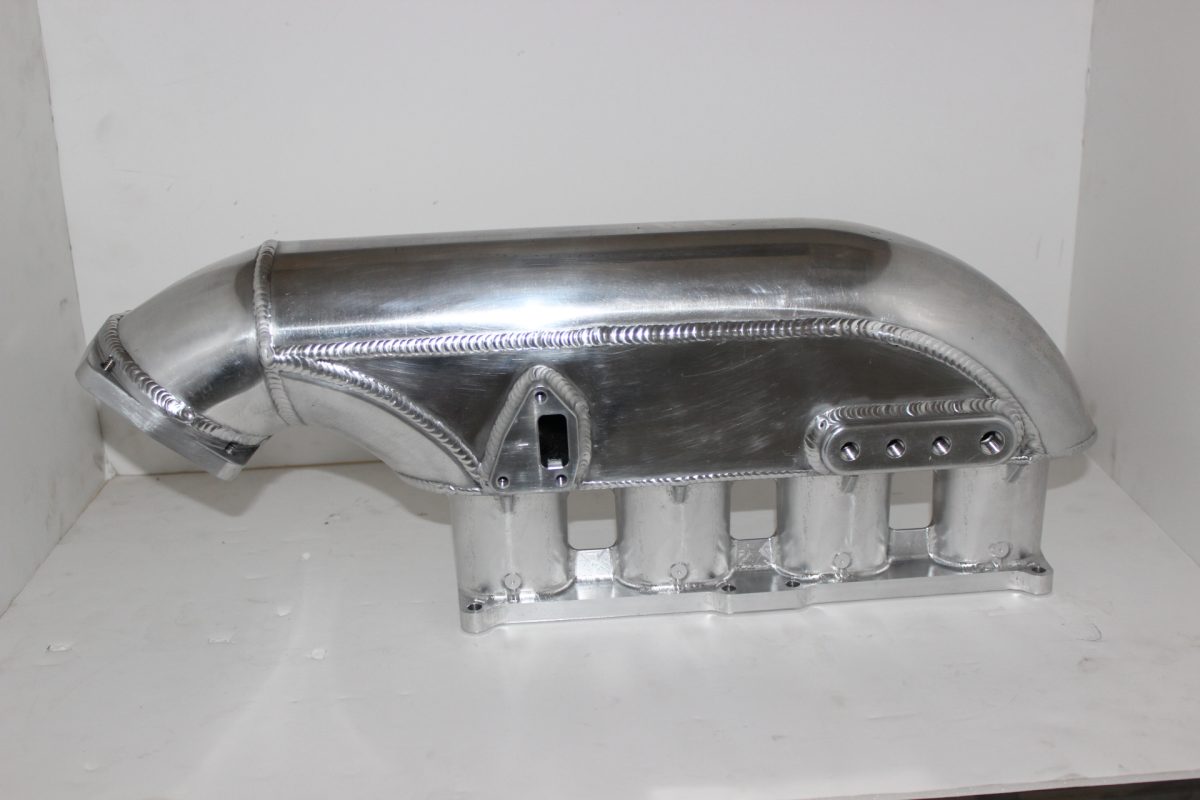

Mazworx SR20VE FWD Intake Manifold

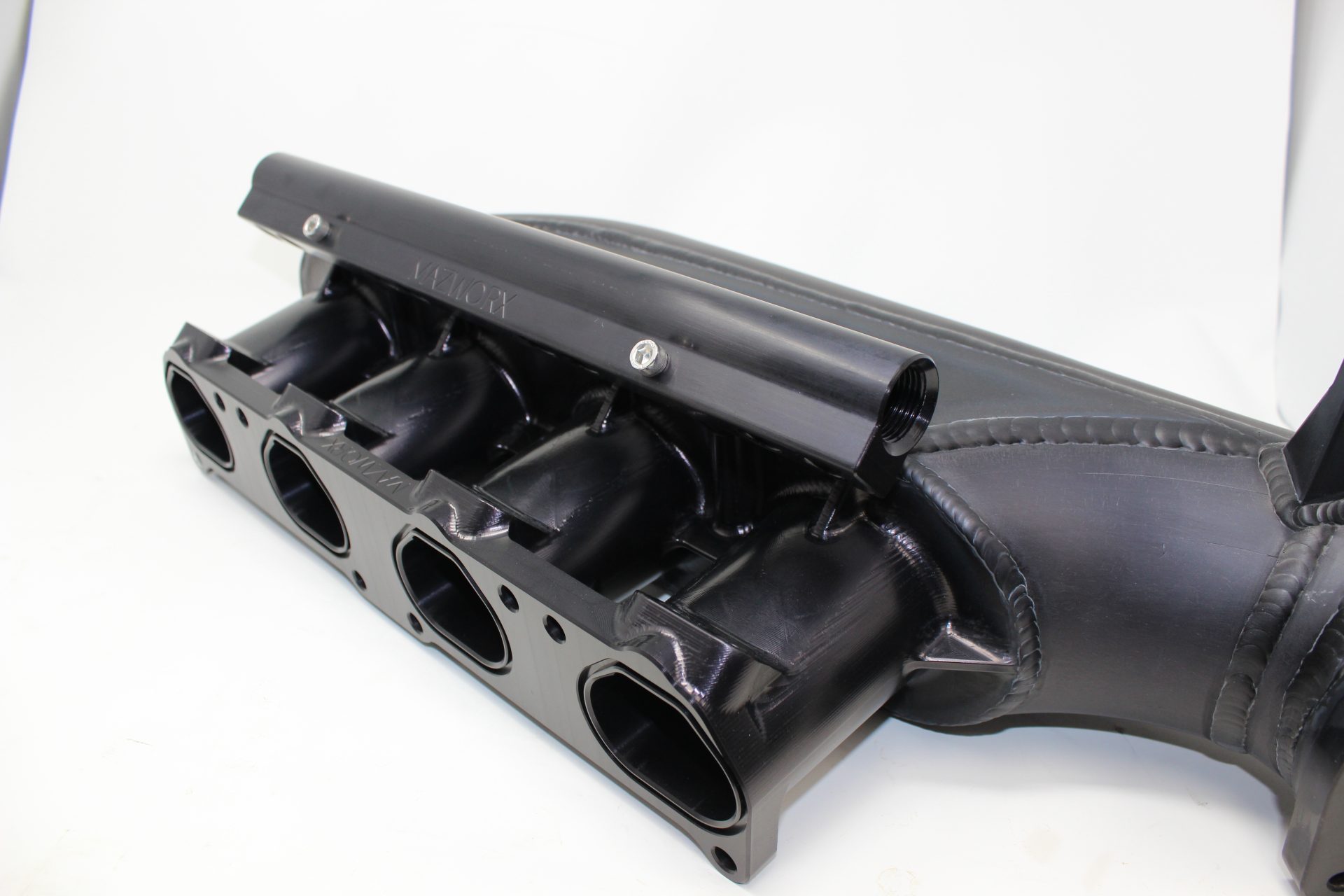

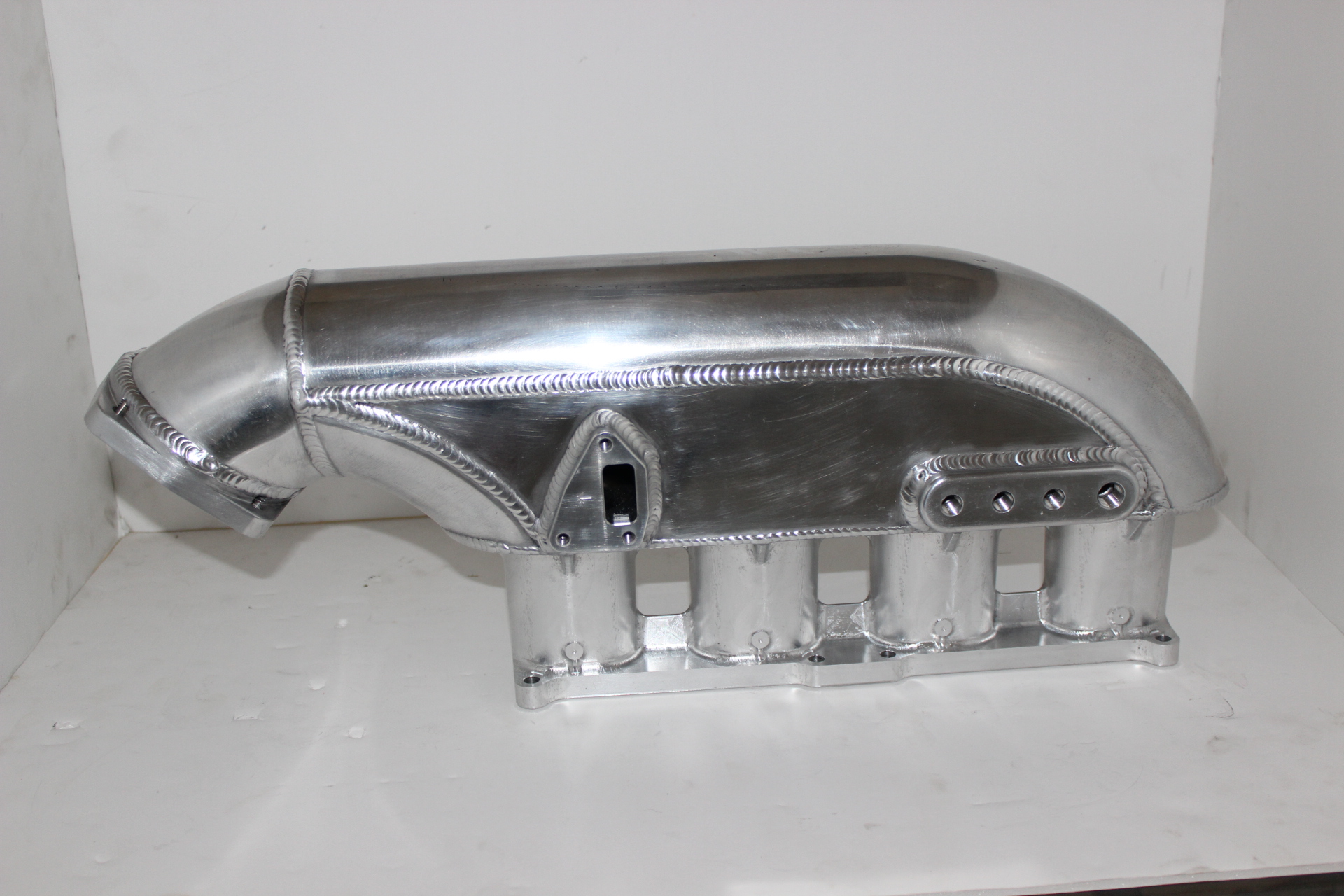

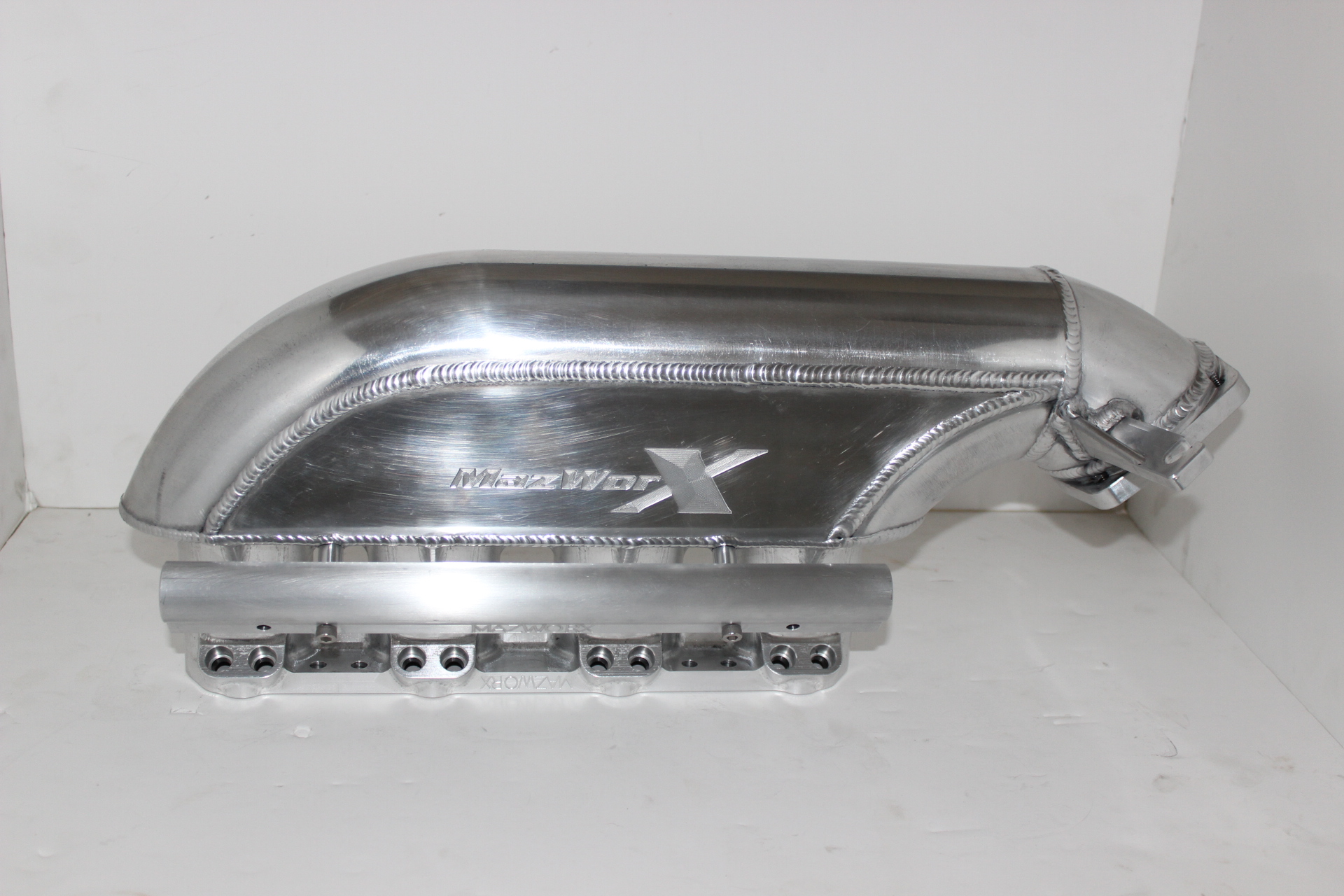

The Mazworx SR20VE FWD Intake Manifold is a precision-engineered component designed for Nissan SR20 engines, specifically fitting B13 and B14 chassis. This intake manifold features a billet one-piece runner section, providing enhanced airflow and performance consistency.

Key Features

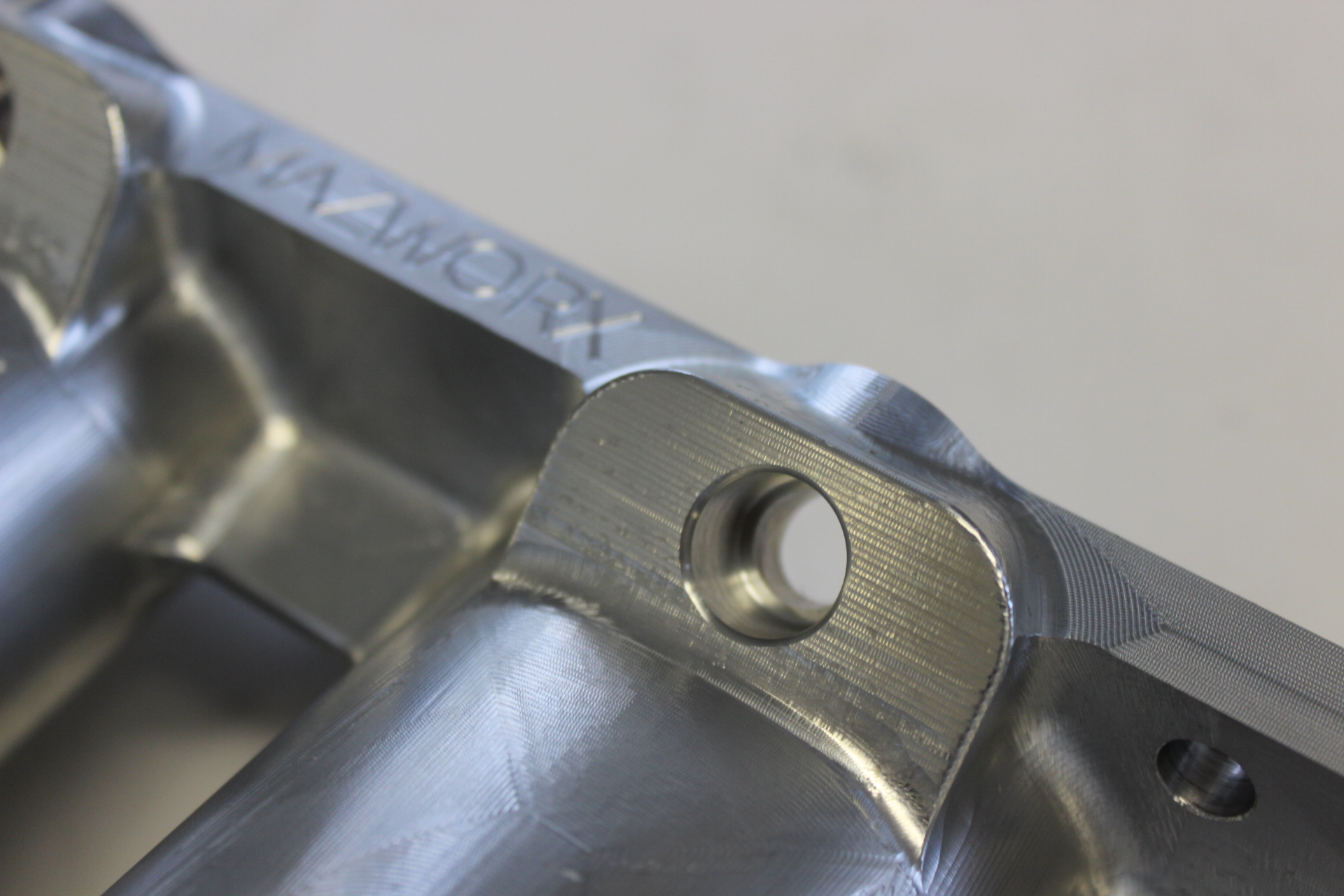

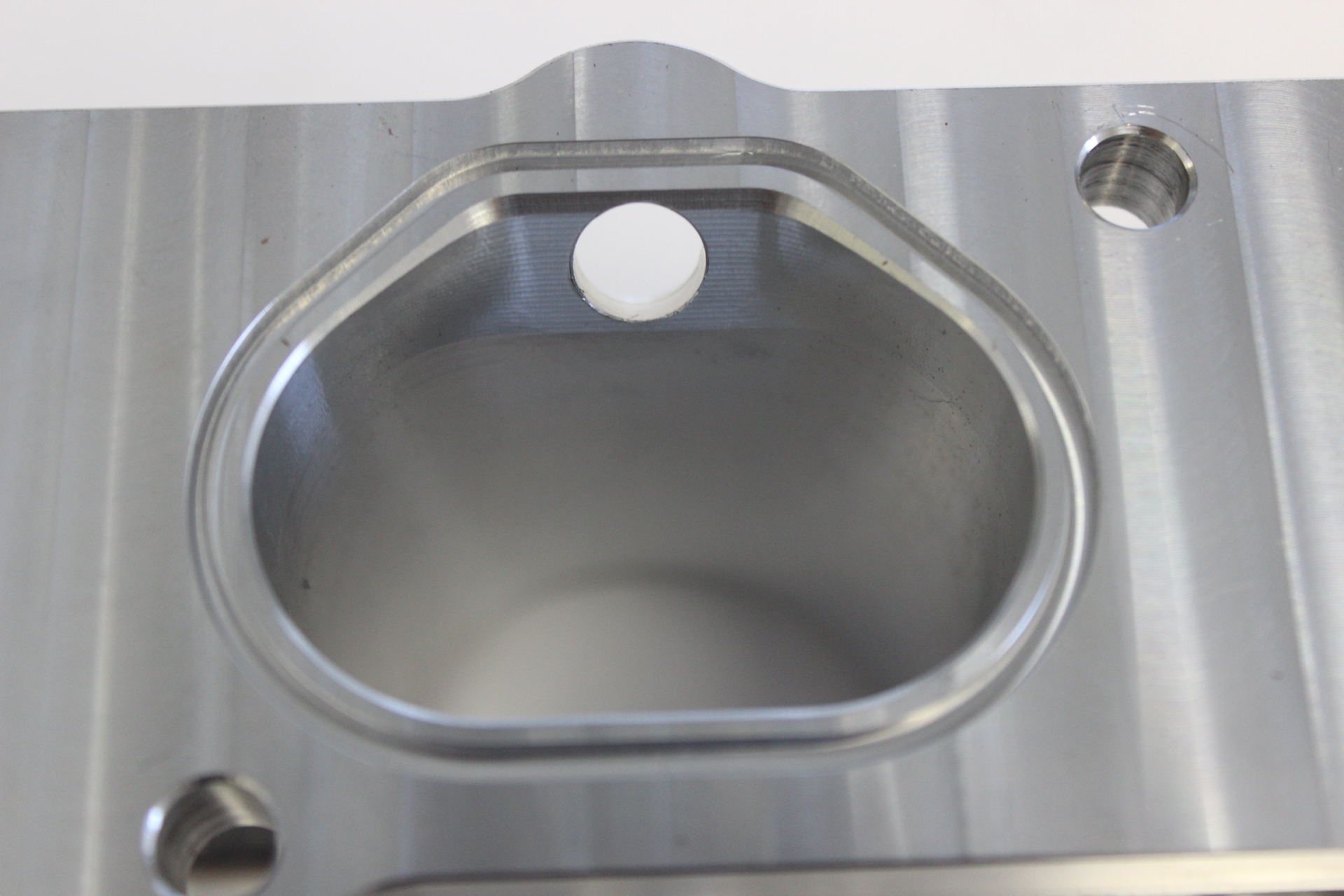

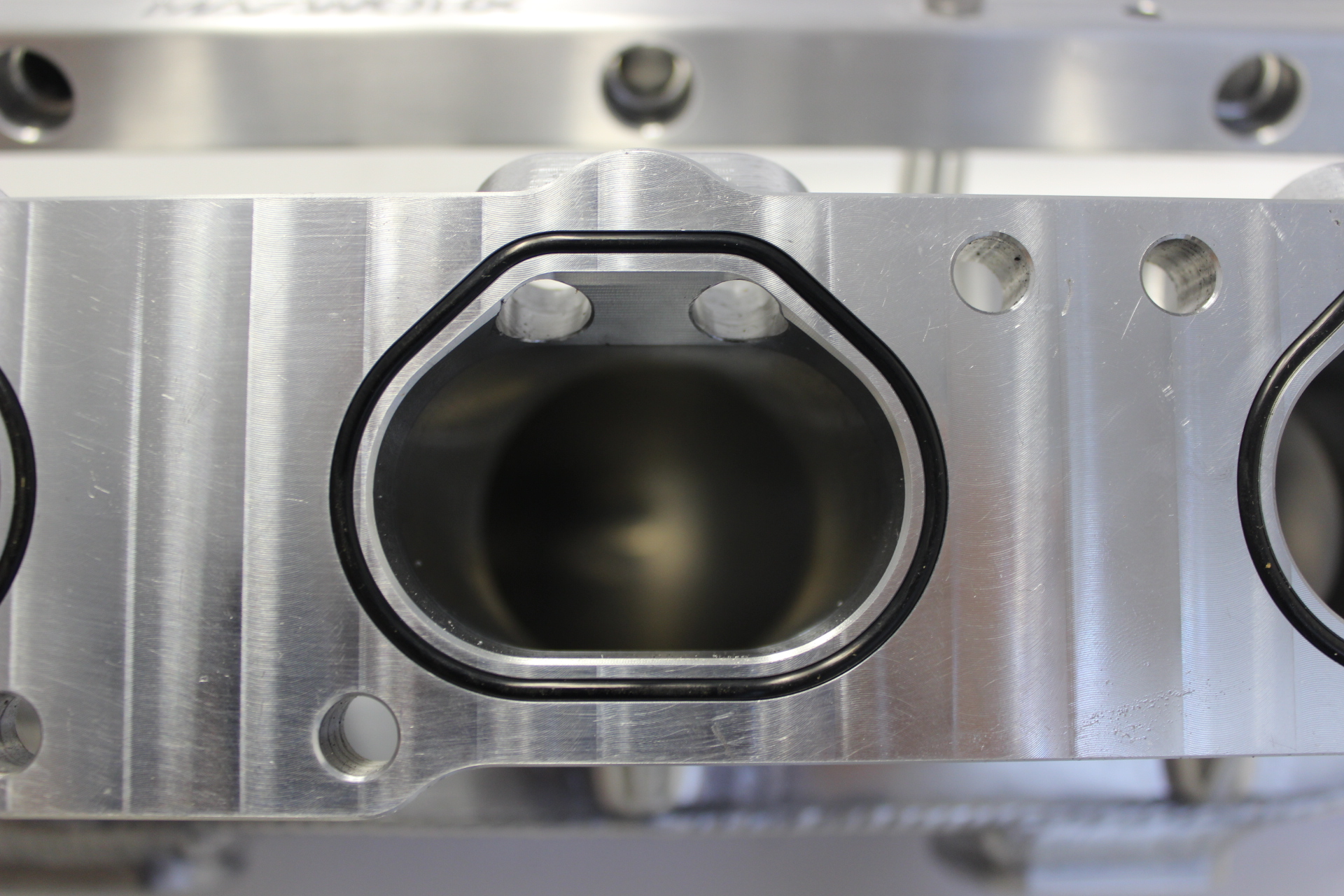

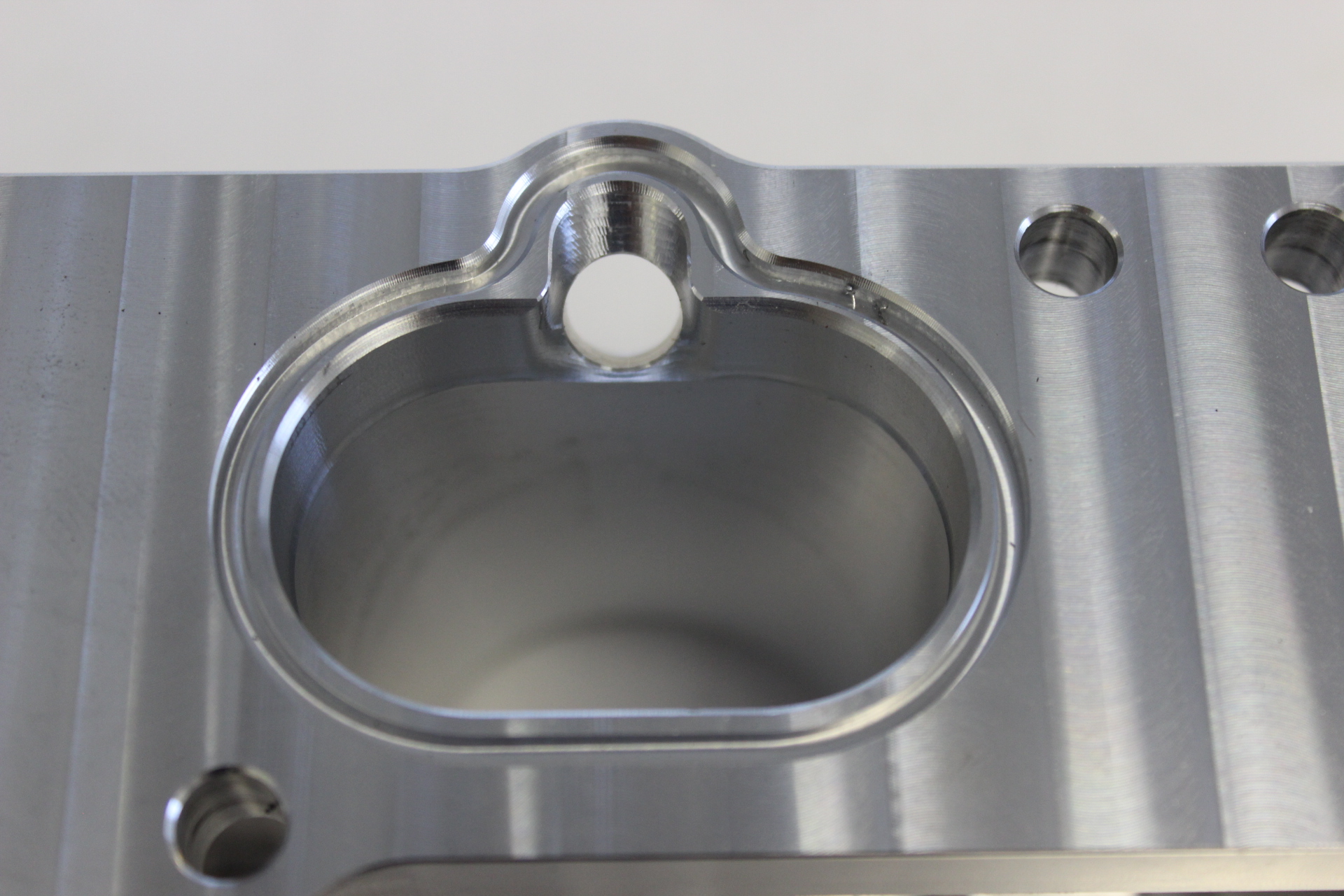

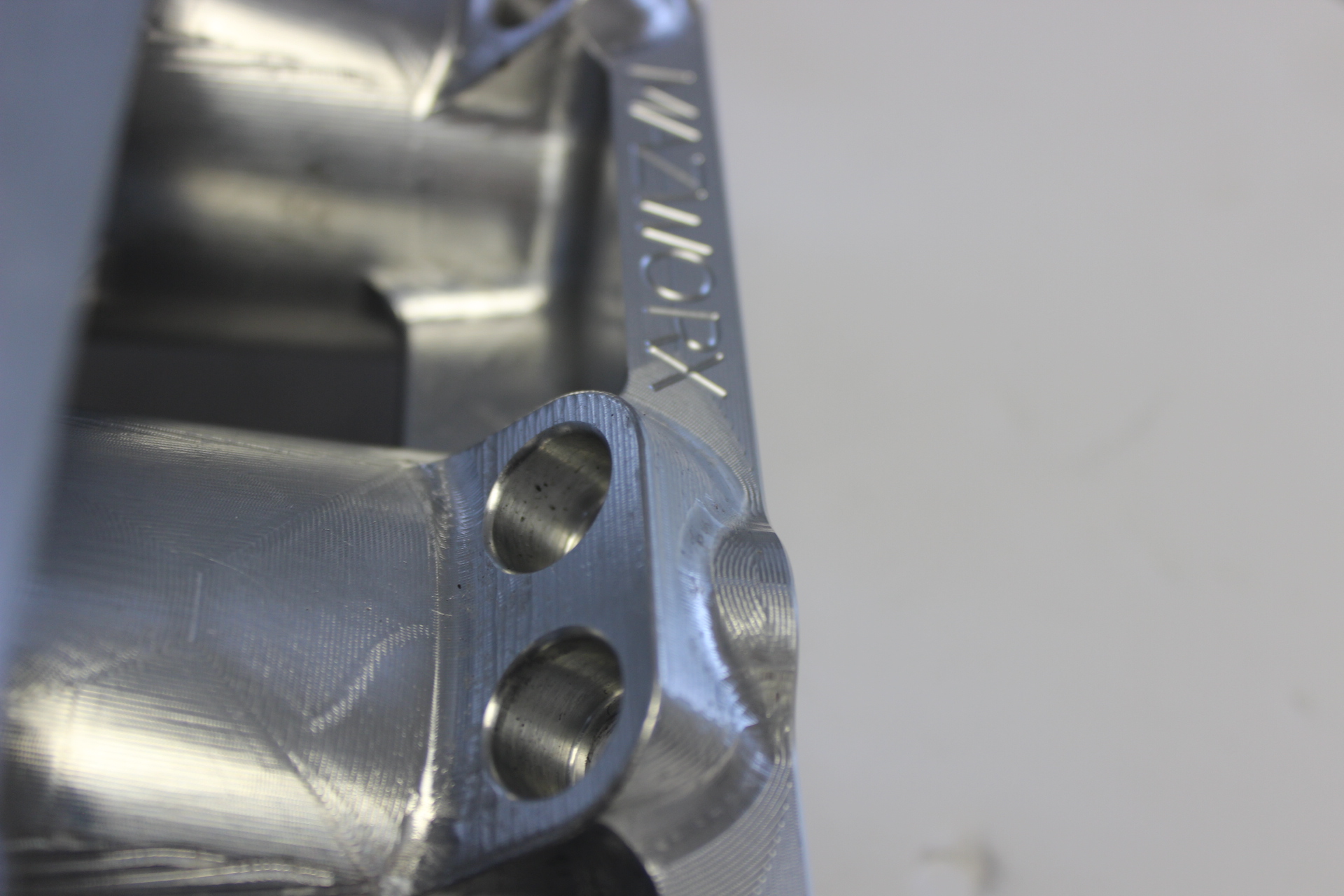

• Compatible with both P11 and P12 head flanges. Standard configurations come with 4 injector pockets, with an 8-injector pocket option available exclusively for the P11 flange due to the slimmer injector port on the P12.
• Fuel rails are designed with -10AN fittings to accommodate high-performance fuel delivery setups.
• Choice of throttle body flange options, including Q45, Bosch 82mm DBW, Bosch 74mm DBW, 75mm Mustang, 82.5mm Mustang, 90mm Mustang, or none, allowing customization to your current setup. The manifold includes the VE IACV by default.
• Pre-marked nitrous oxide nozzle bungs located on the bottom of the runners for easy installation and customization.
• Designed for both right-hand drive (RHD) and left-hand drive (LHD) vehicle configurations.
• Fits injectors sized 14mm x 60mm, ensuring compatibility with industry-standard injector dimensions.
• Optional anodizing service colors the entire manifold, inside and out, in black for enhanced corrosion resistance and aesthetic appeal.

Installation Notes: The manifold requires modification to the sensor water neck, as it will not clear the factory configuration without adjustment.
