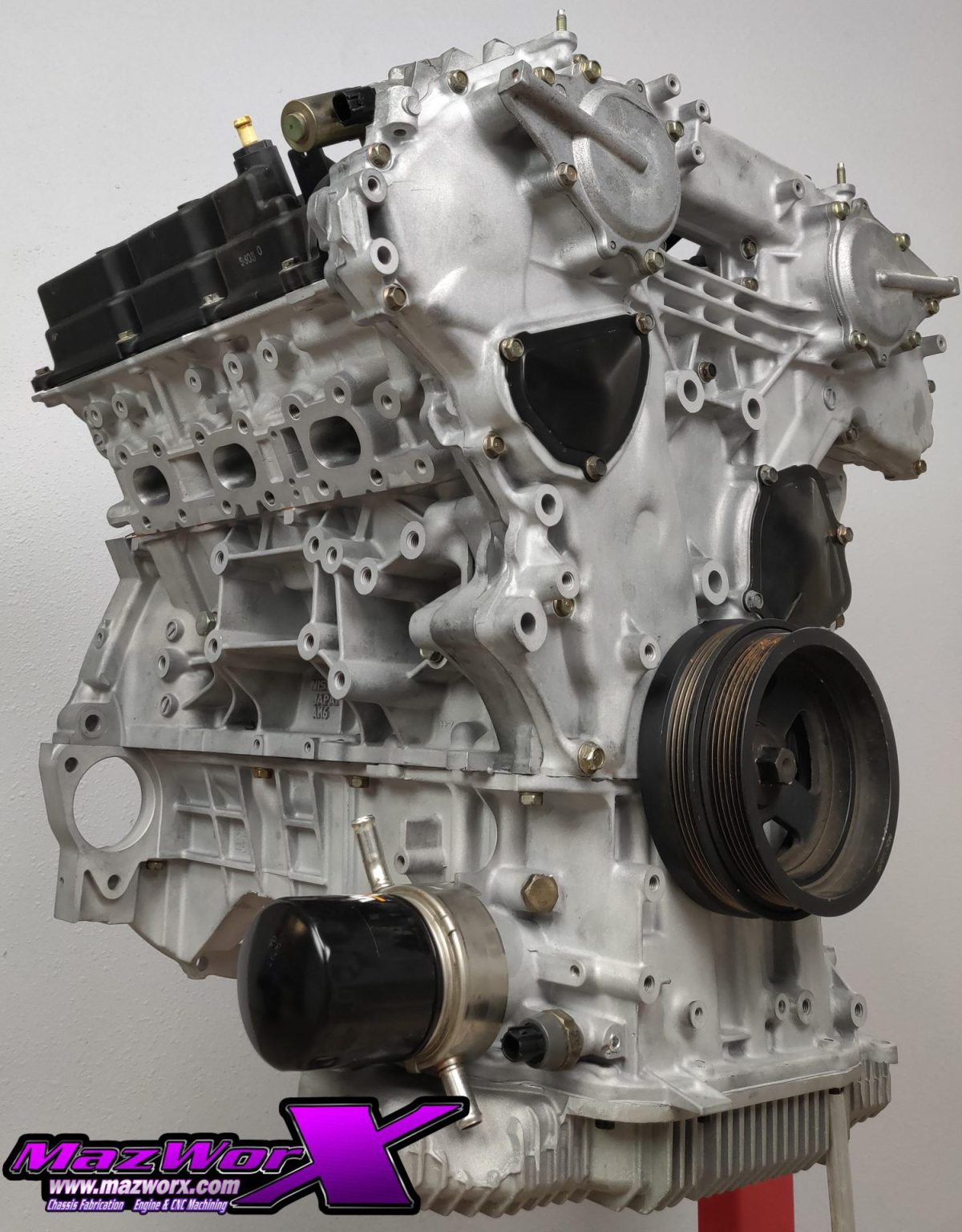

Mazworx VQ35DE Stage 1 Turbo Long Block
$14,999.00
Built to support up to 650 horsepower, the Mazworx VQ35DE Stage 1 Turbo Long Block combines expertly machined components with premium parts to deliver a reliable and powerful foundation for your turbocharged Nissan VQ35 engine build. A complete assembly including upgraded pistons, rods, cams, and OEM accessories ensures performance and durability.
Build to Order
Modern Production Capabilities.
Advanced Engineering & Race Tested.
Modern Production Capabilities.
Advanced Engineering & Race Tested.
Introducing the Mazworx VQ35DE Stage 1 Turbo Long Block, engineered to perform reliably at power levels up to 650 horsepower. This long block is meticulously built using high-quality components and detailed craftsmanship to provide a strong foundation for turbocharged applications.
Stage 1 Short Block
Labor
- Complete disassembly of the short block
- Hot tank cleaning to remove contaminants
- Sandblasting of the block for surface preparation
- Precision resurfacing of the block deck
- Resizing the cylinders with torque plate for accuracy
- Line honing of cylinder bores
- Balancing the crankshaft including by bobweights
- Reassembly of the short block
Components Included
- Diamond Racing Pistons, 96mm diameter with 9.5:1 compression ratio
- Manley H-Beam Connecting Rods
- ACL Race Bearings
- ARP Main Studs
- Miscellaneous plugs and dowels

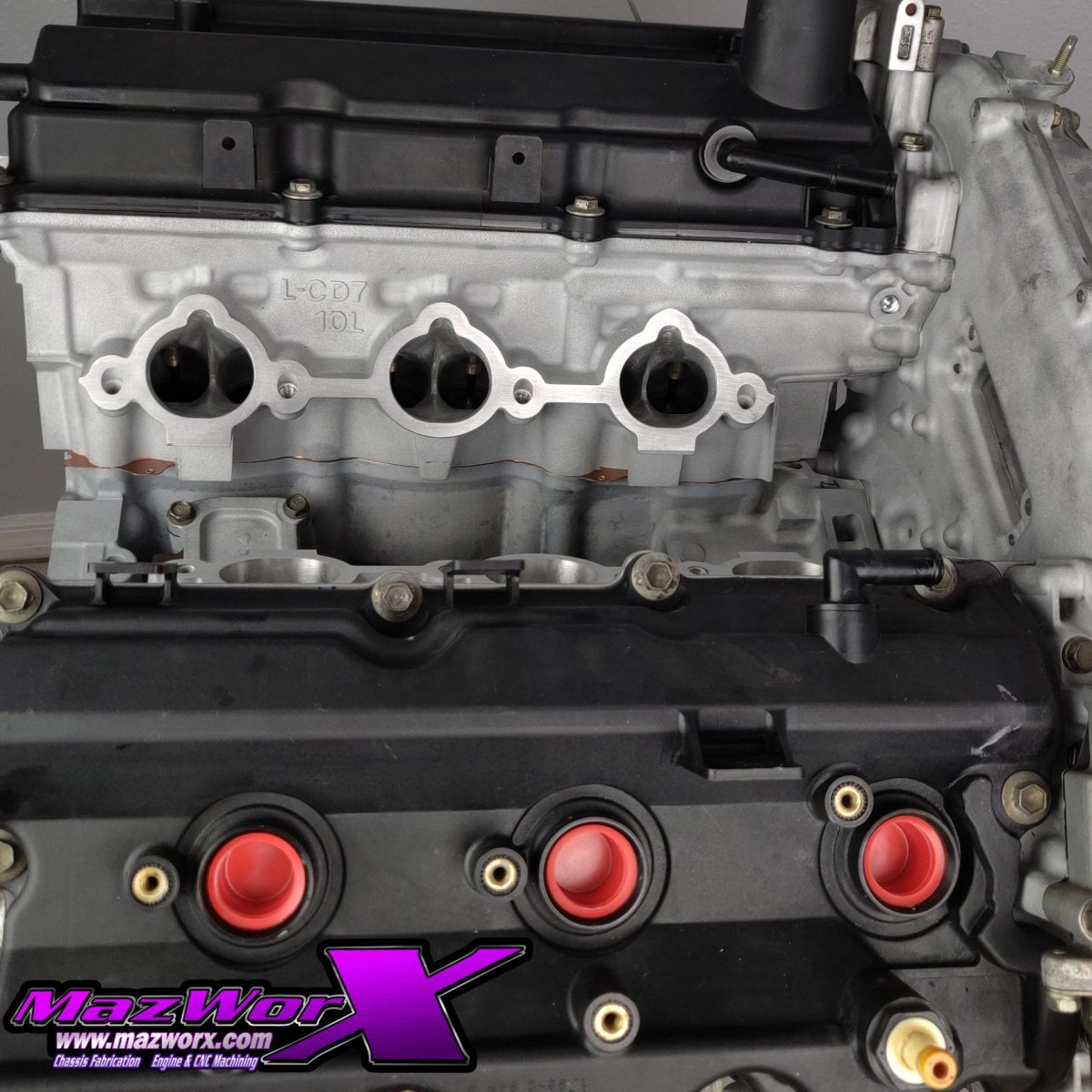

Stage 1 Cylinder Heads
Labor
- Drilling and tapping oil port plugs as needed
- Replacement of freeze plugs

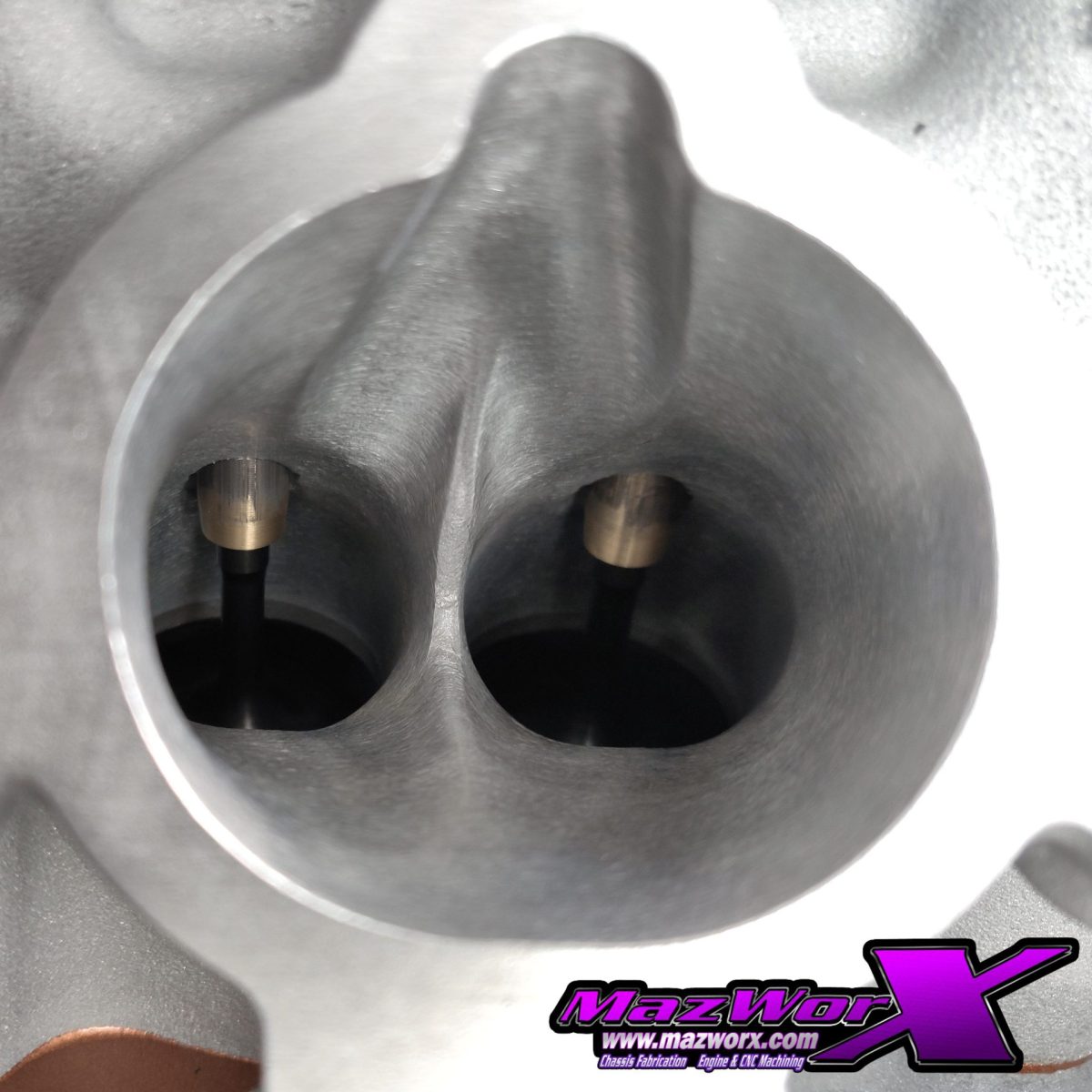

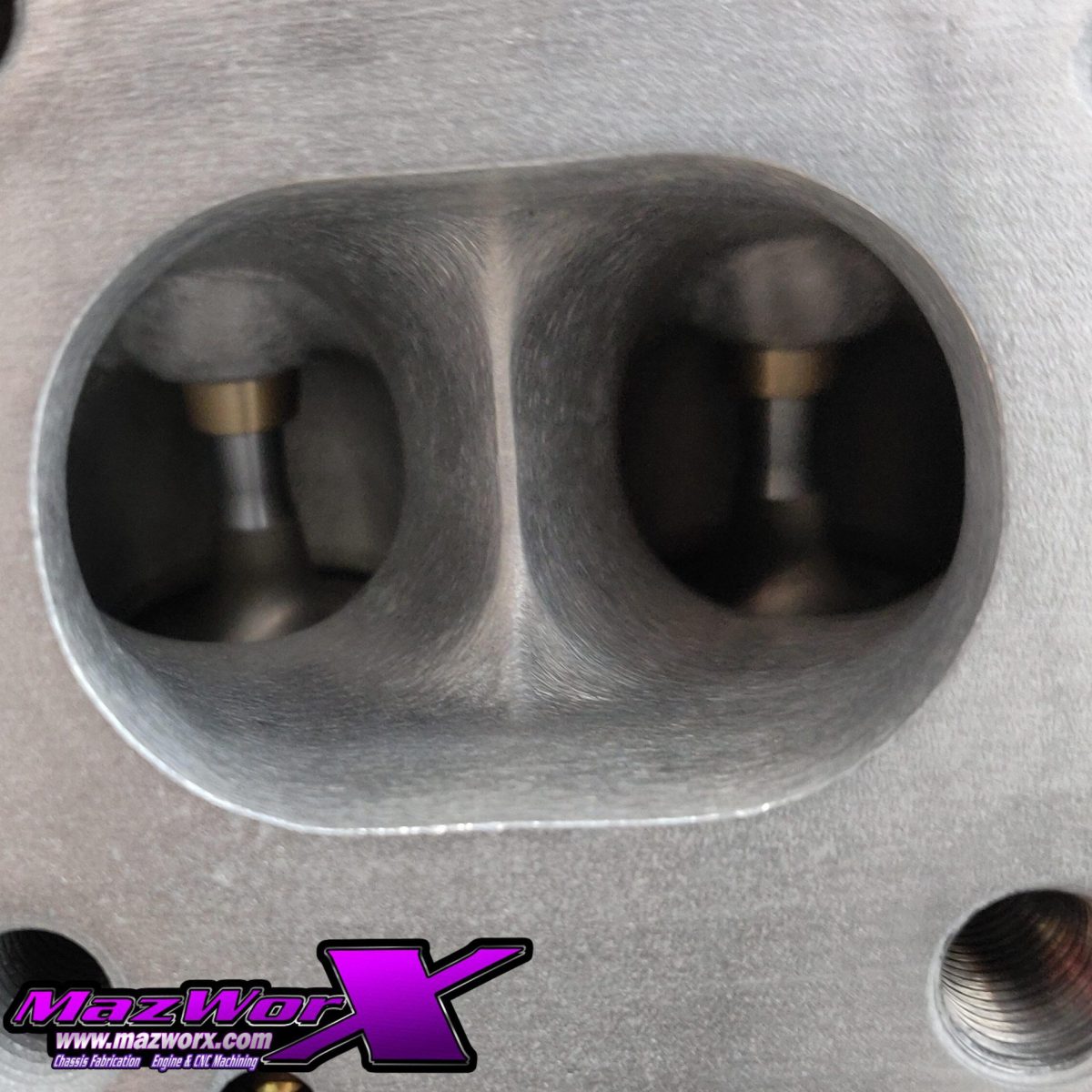

- Stage 1 porting and polishing for improved airflow
- Removal, reaming, and reinstalling of valve guides
- Race-quality valve job
- Setting precise valve lash
- Resurfacing of the cylinder head deck
- Final assembly of the head
Components Included
- Supertech standard size intake valves
- Supertech Inconel standard size exhaust valves
- Supertech bronze valve guides
- Supertech dual valve spring kit rated at 58 lbs
- Supertech valve seals
- BC Stage 2 cams with 264 duration and 10.8 mm lift
- Miscellaneous plugs
Complete Long Block Assembly
Labor
- Assembly of the long block components into a complete engine
- Engine spin and primer lubrication applied
- Oil pressure system checked to ensure reliability
Components Included
- Tomei head gaskets
- ARP head studs
- OEM Rev Up oil pump
- OEM water pump
- OEM timing chain kit
- High capacity oil pan
- GReddy magnetic oil drain plug
- All necessary gaskets and seals
- Lucas SAE 30 break-in oil
- Wix oil filter
Note: A core long block is required to complete this purchase.
