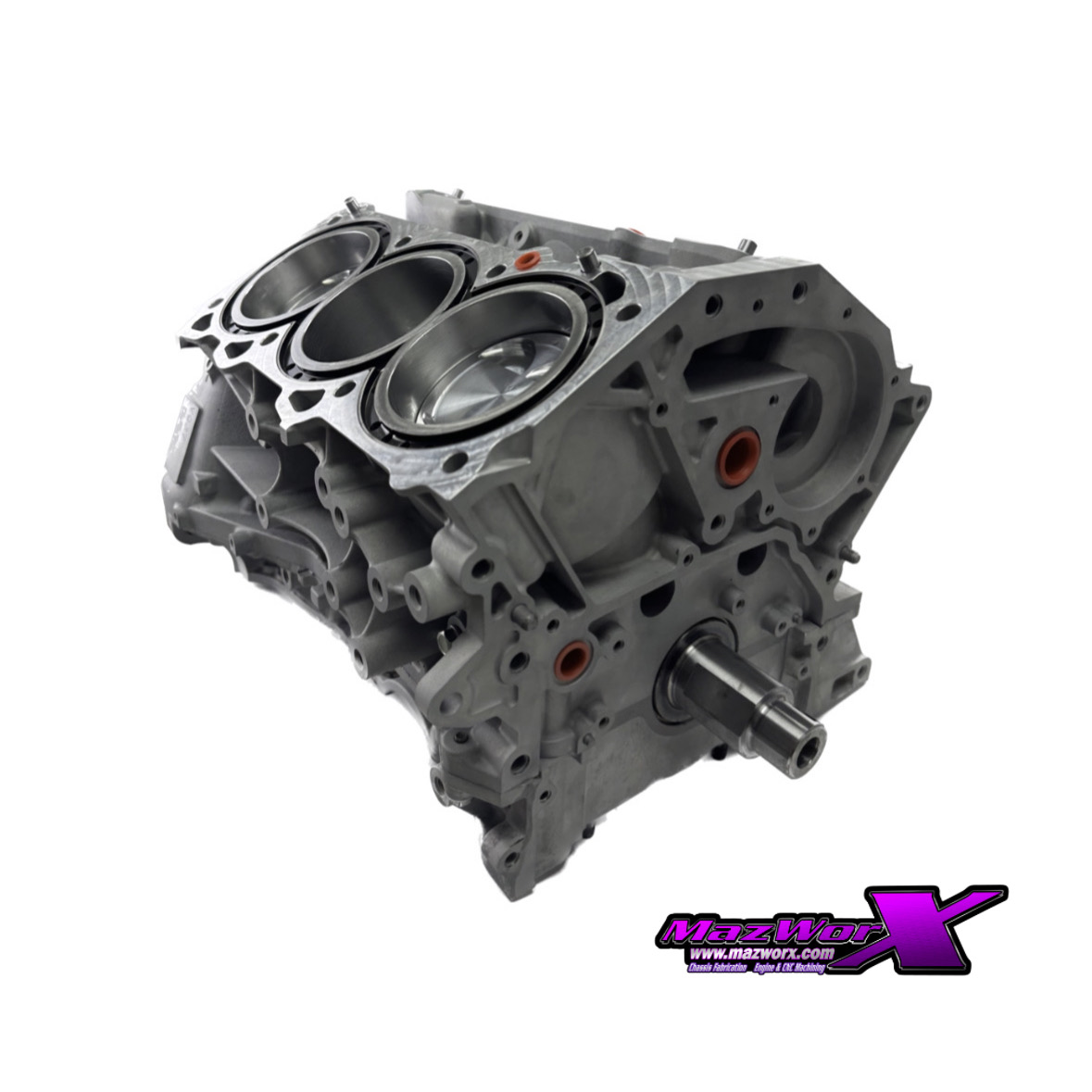

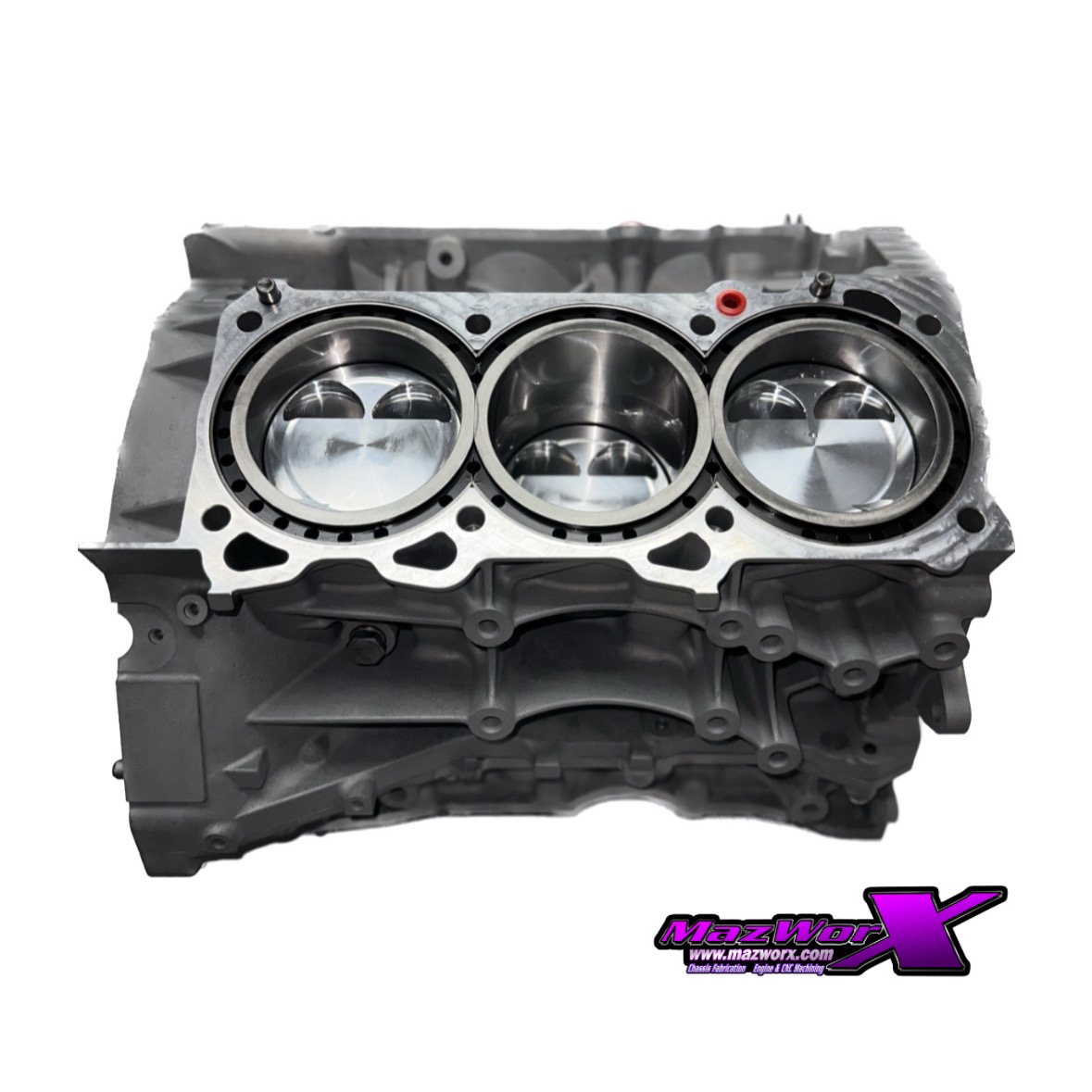

Mazworx VQ37VHR Short Block Stage 3

The Mazworx VQ37VHR Short Block Stage 3 is a high-quality, meticulously assembled engine component designed for Nissan VQ37 engines. This short block has been carefully built to ensure enhanced durability and performance suitable for demanding racing applications.

Labor and Assembly Process

• Complete disassembly of the short block
• Thorough hot tank cleaning for optimal surface preparation
• Block sand blasting to remove old coatings and contaminants
• Installation of Darton MID sleeves for improved cylinder durability
• Step decking of the block providing a v-shaped profile
• Precise cylinder resizing using torque plates to maintain bore alignment
• Line honing for accurate bore finishing
• Crankshaft balancing with bobweights to ensure smooth operation
• Careful short block assembly with specified components

Included Parts

• High-durability CP pistons, 96mm diameter, with a 10:1 compression ratio
• Heavy-duty wrist pins
• Darton MID cylinder sleeves for increased wear resistance
• Carrillo connecting rods for enhanced strength
• King race bearings or equivalent for reliable bearing performance
• ARP main studs for secure assembly
• Various plugs and dowels as required

Requirements

• Core short block from the user to complete the build

This Stage 3 short block serves as a solid foundation for building a powerful and reliable Nissan VQ37 engine setup. It combines precision machining with premium components to maximize engine durability and efficiency under racing conditions.
