RB26DETT Stage 2.5 Cylinder Head

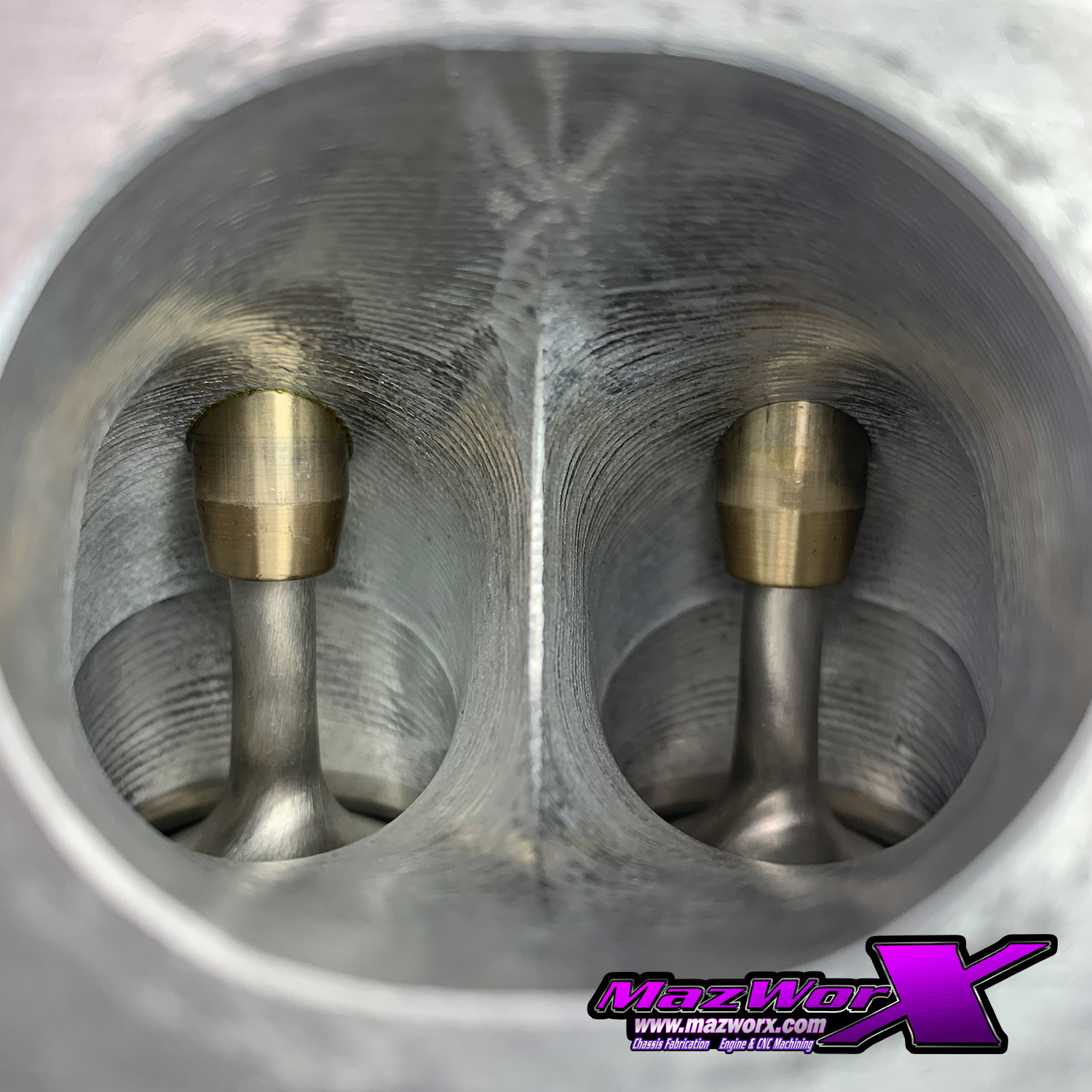

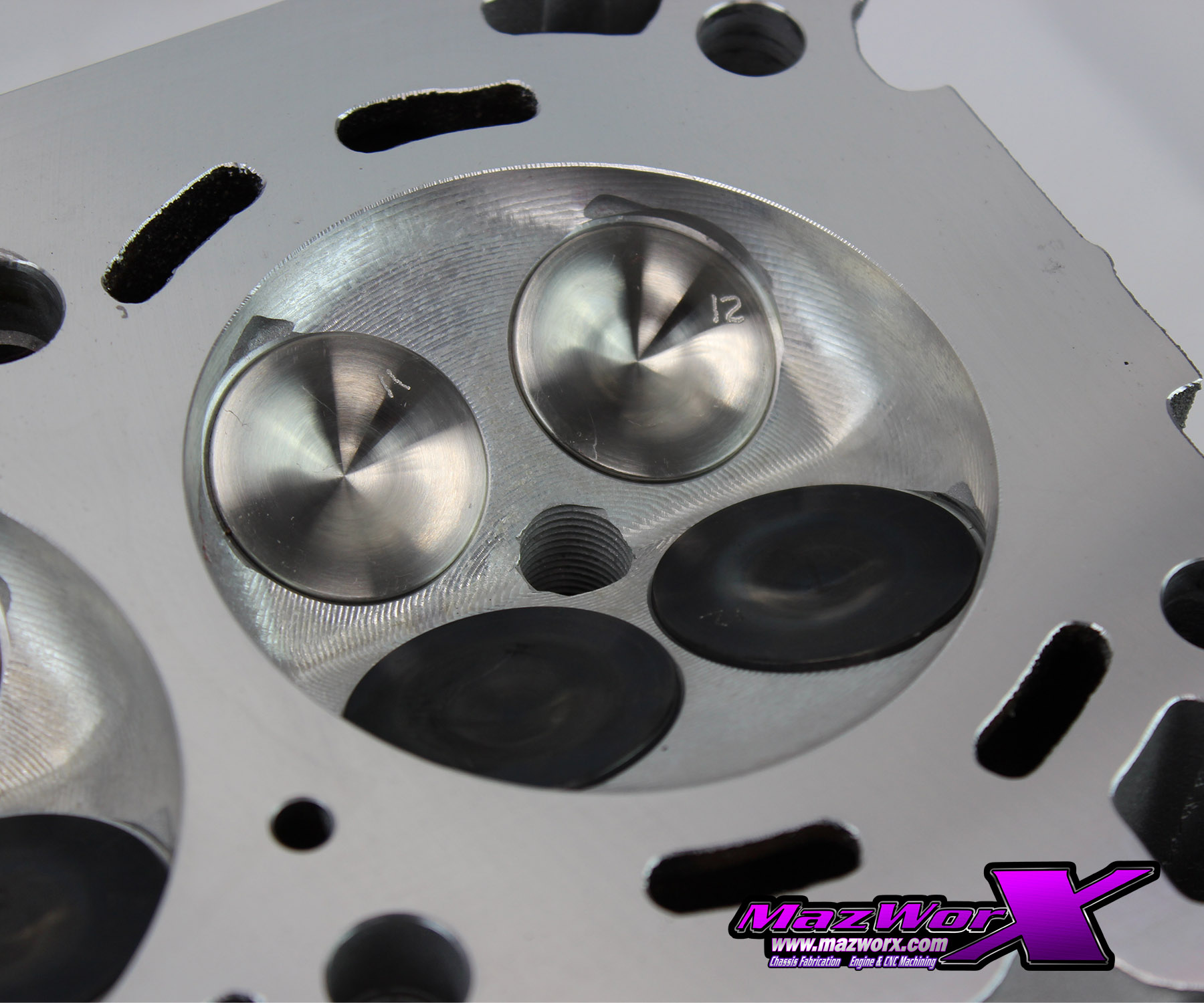

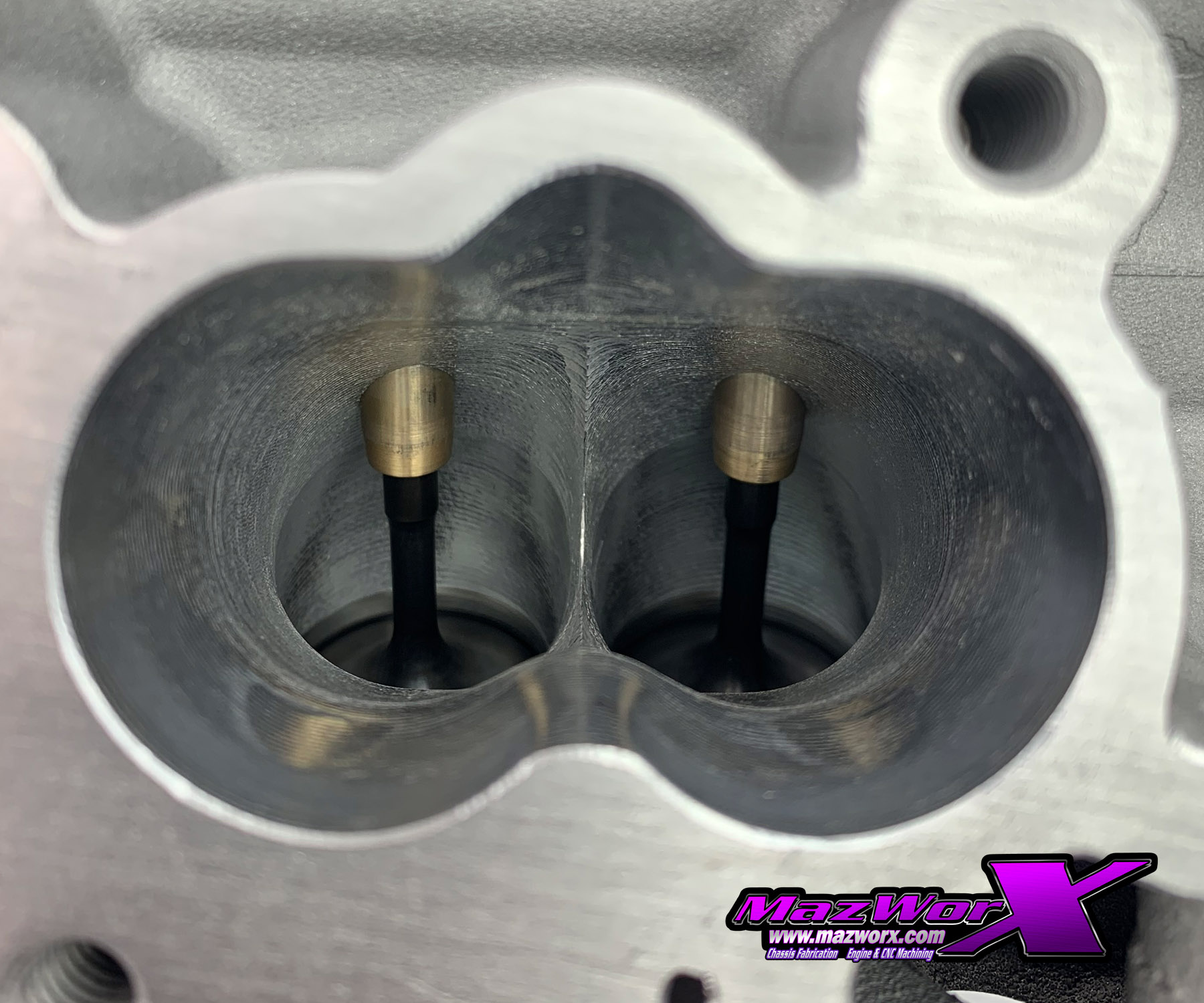

This head package is designed for engines making 1000hp.  The intake and exhaust ports are CNC ported and opened up to match the +1mm valves.  Combustion chambers are CNC machined to match an 87mm bore and can be either fully opened up or stay with the quench pads.  Here’s a break down of the head.

Labor:
Disassemble
Sand Blast
Remove/Drill/Tap/Replace Oil Port Plugs
Machine for Threaded Freeze Plugs
Stage 3 CNC Port and Chamber
Remove, Reinstall, Ream Valve Guides
Valve Job, Race
Set Valve Lash
Resurface Head
Assemble Head

Parts:
Supertech Intake Valves, +1mm
Supertech Inconel Exhaust Valves, +1mm
Supertech Bronze Valve Guides
Supertech Dual Spring Kit, 92/82lbs
Supertech Titanium Retainers
Supertech Valve Seals
Mazworx Threaded Freeze Plugs
Misc Plugs

Need:
Core Head
Buckets/Shims
Valves Spring Seats/Keepers

Options:
Kelford Cams 182-C 272/272
Tomei ProCam 272/272
