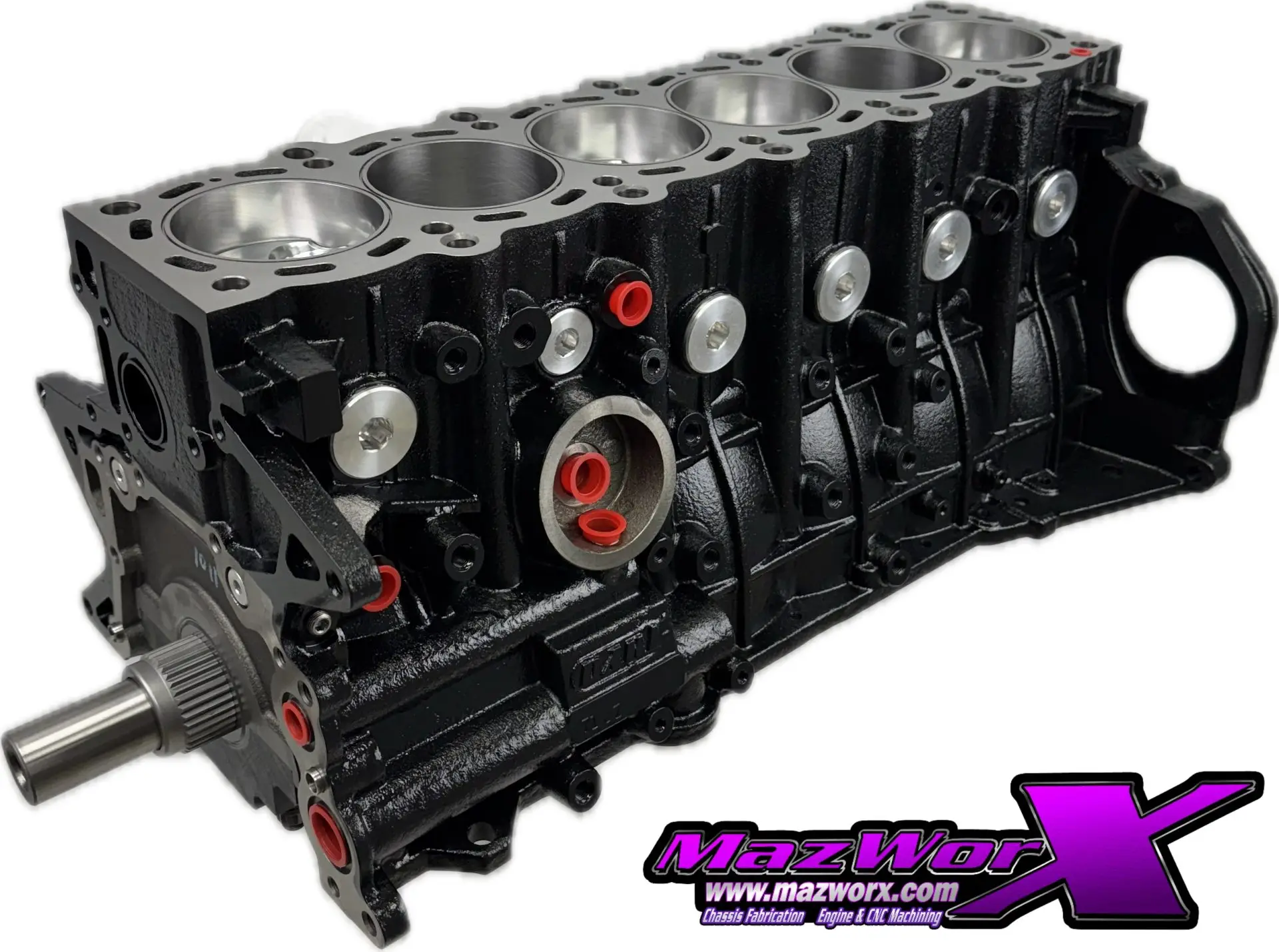

Mazworx 2JZ-GTE Short Block Stage 3.5 Dart 3.2 Liter
Price range: $15,599.00 through $15,999.00
The Mazworx Stage 3.5 2JZ-GTE short block delivers a fully assembled, high-strength foundation for your Toyota JZA80 build. Featuring a Dart Iron Eagle block, forged pistons, Brian Crower forged rods and billet crankshaft, plus professional machine work and assembly. No core required. Upgrade your engine with confidence and durability.
Modern Production Capabilities.
Advanced Engineering & Race Tested.
Modern Production Capabilities.
Advanced Engineering & Race Tested.
The Mazworx Stage 3.5 2JZ-GTE short block is a meticulously crafted performance engine foundation designed for the Toyota JZA80 chassis. Built to deliver durability and power potential, this short block integrates high-quality components and expert labor to ensure a reliable and robust base for your next build.
Key Features
- 2JZ Dart Iron Eagle Block featuring 1/2″ head studs for enhanced strength
- RS1600/CP Pistons, 86mm diameter, with a 10.0:1 compression ratio and upgraded .250″ wall wrist pins for added reliability
- Brian Crower MOAR 625+ I-Beam forged connecting rods for superior rod strength
- Brian Crower billet crankshaft with a 90mm stroke for balanced performance
- Brian Crower oil pump drive gear for efficient lubrication
- ACL race bearings designed for high durability and performance
- OEM oil squirters to maintain optimal piston cooling
Professional Assembly and Machining Process
- Deck height checked and set for precise combustion chamber volume
- Block disassembled and inspected thoroughly to ensure integrity
- Hot tank cleaning and detailed block cleaning for preparation
- Iron block painted to prevent corrosion
- Machining performed for fire ring head gasket sealing
- Cylinders rod-notched to accommodate 90mm stroke crankshaft
- Block resurfacing done inline for flatness and correct tolerances
- Cylinder bore resized with torque plate to simulate head pressure
- Line bore resized for precise crankshaft journal alignment
- Crankshaft balanced and oil pump drive gear installed for smooth operation
- Final assembly of short block completed with professional care
Options
- Choice of aluminum connecting rods for a lighter rotating assembly
No cores are required for purchase. This short block offers a straightforward path to upgrading your Toyota 2JZ-GTE engine with high-quality components and precision assembly backed by Mazworx expertise.
