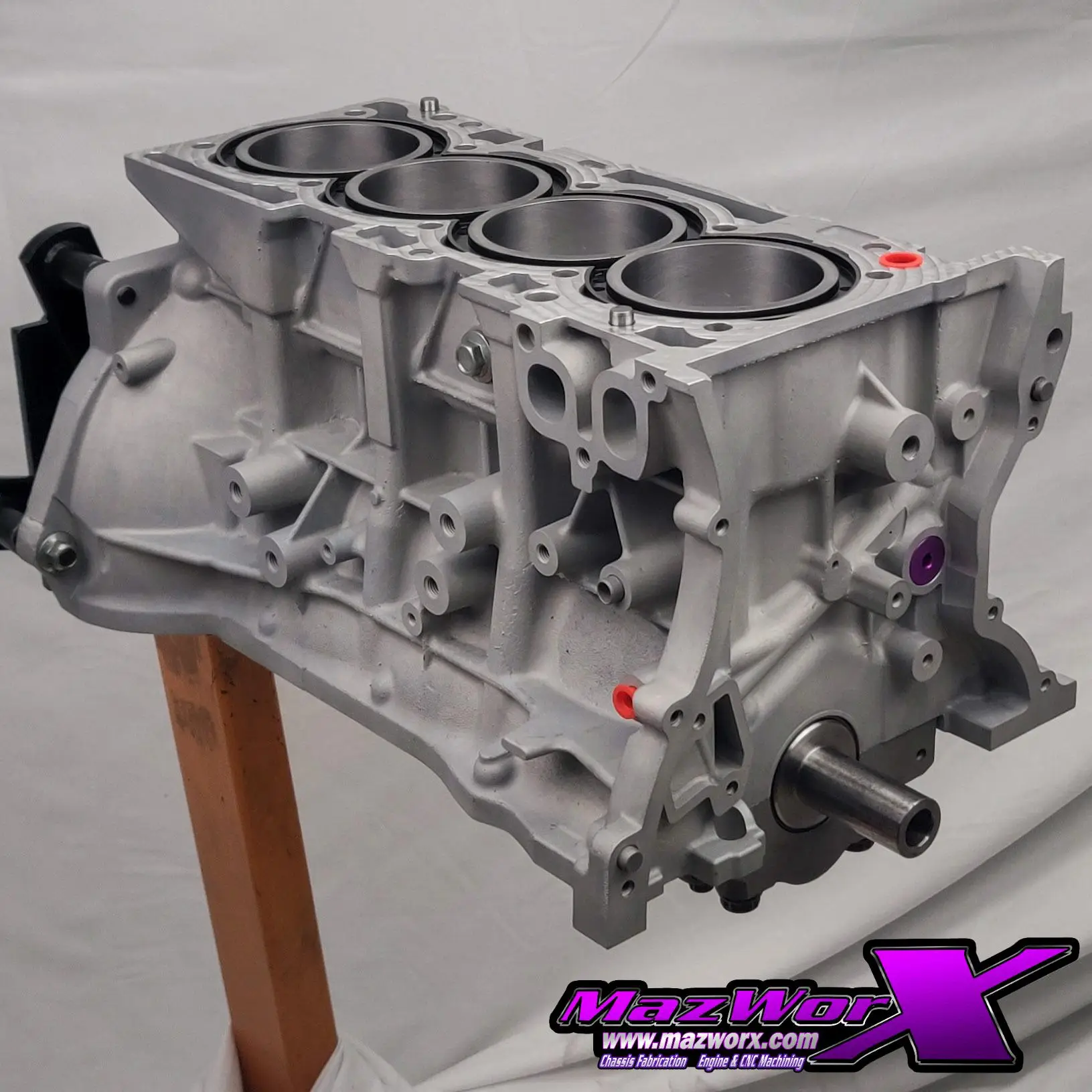

Mazworx 4B11 Short Block Stage 2

The Mazworx 4B11 Short Block Stage 2 is expertly engineered to support power outputs up to 800 horsepower, making it an ideal foundation for high-performance Mitsubishi EVO X builds.

Comprehensive Labor and Assembly Process

• Complete disassembly of the short block
• Thorough cleaning including hot tank and sand blasting
• Removal, retapping, and replacement of oil port plugs

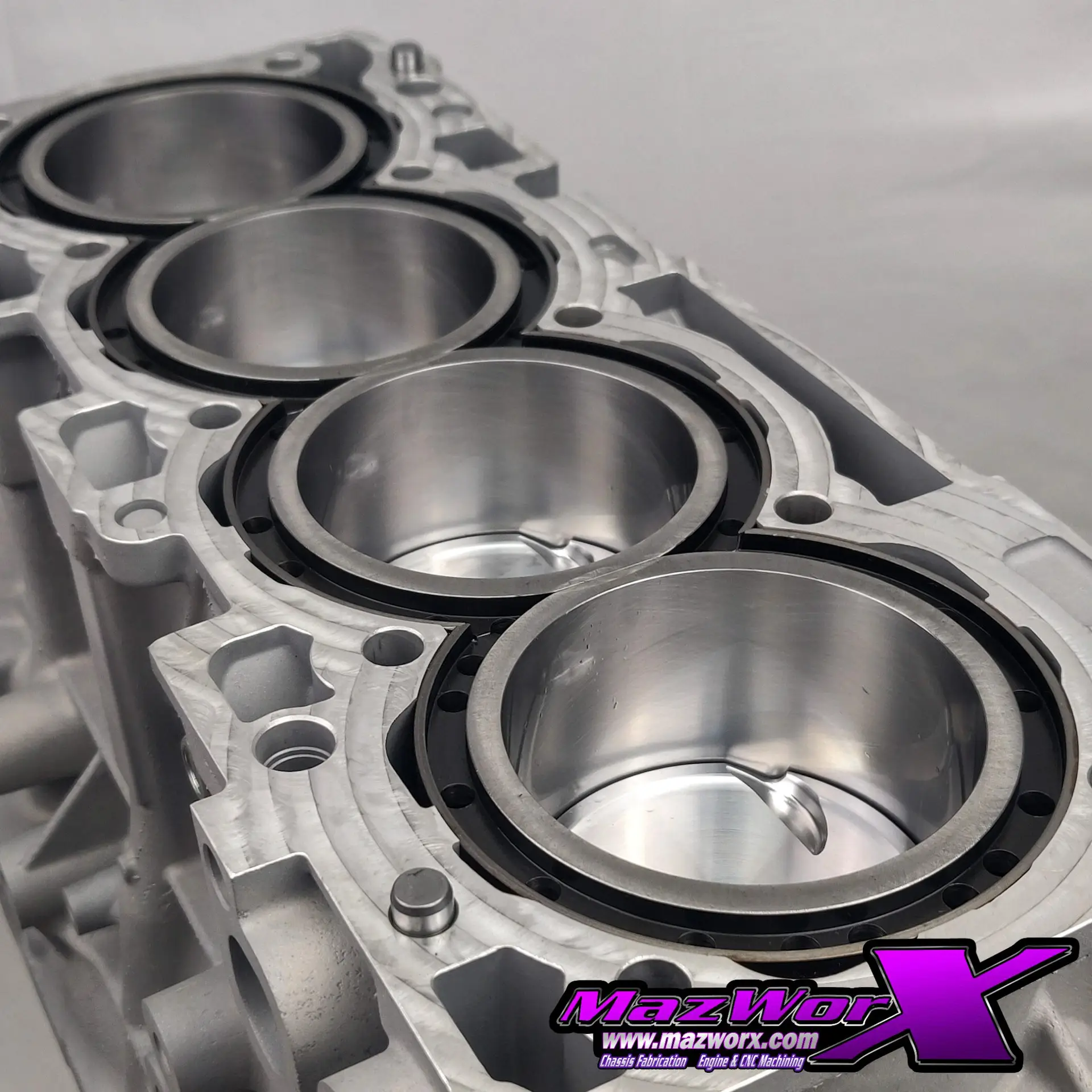

• Installation of durable Darton MID sleeves
• Precision resizing of cylinders using torque plates for accurate honing
• Step decking of the block to ensure optimum surface alignment
• Line bore resizing for proper bearing fitment
• Crankshaft cleaning, inspection, polishing, and balancing
• Final assembly of the short block with high-quality hardware

Premium Performance Components

• CP forged pistons, 86mm diameter, with 9:1 compression ratio and upgraded .200″ wall wrist pins
• Manley Turbo Tuff connecting rods engineered for strength and durability
• ACL race-grade bearings designed for endurance under high stress
• Darton MID sleeves providing superior cylinder wear resistance

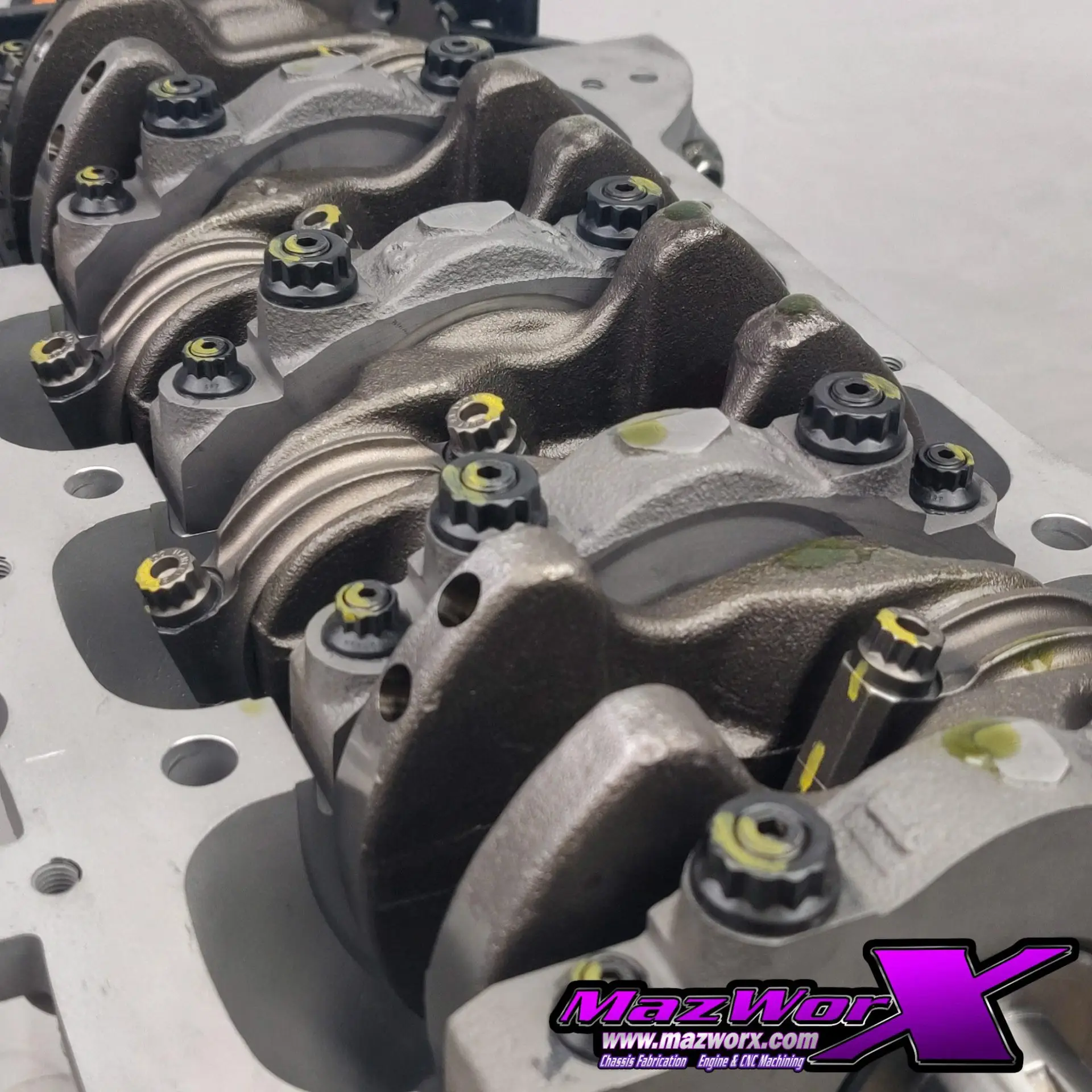

• ARP main studs for enhanced block rigidity and reliability
• Various necessary plugs and fittings

Customer Requirements

Customers are required to supply a core short block to serve as the base unit for this build.

The Mazworx 4B11 Short Block Stage 2 is the perfect choice for enthusiasts seeking a robust, meticulously assembled short block capable of handling significant power upgrades while maintaining reliability and precision engineering.
