Mazworx S14 240SX 8.8 IRS Kit with Grannas Diff Cover

Introducing our strongest and most versatile rear end package for the 240sx chassis yet! By utilizing the abundant Ford 8.8 differential we’ve opened up the possibilities for an endless and affordable aftermarket. Whether you need a clutch type LSD or a locked spool for your build it is available, as are many different gear ratios to suit your needs exactly!  Does not clear the factory S14 fuel tank.  Must use a fuel cell.

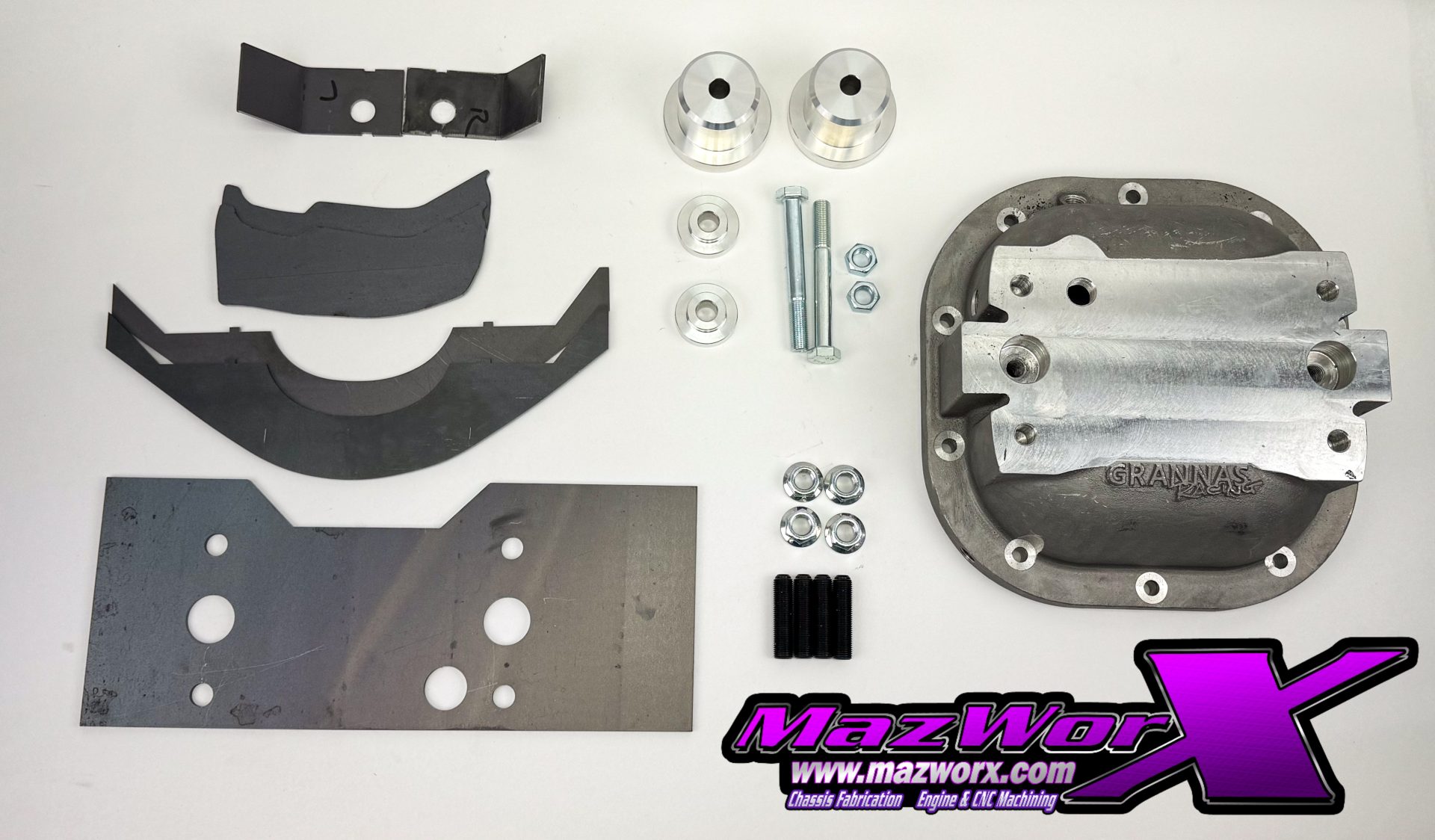

Includes:

Laser cut unwelded brackets

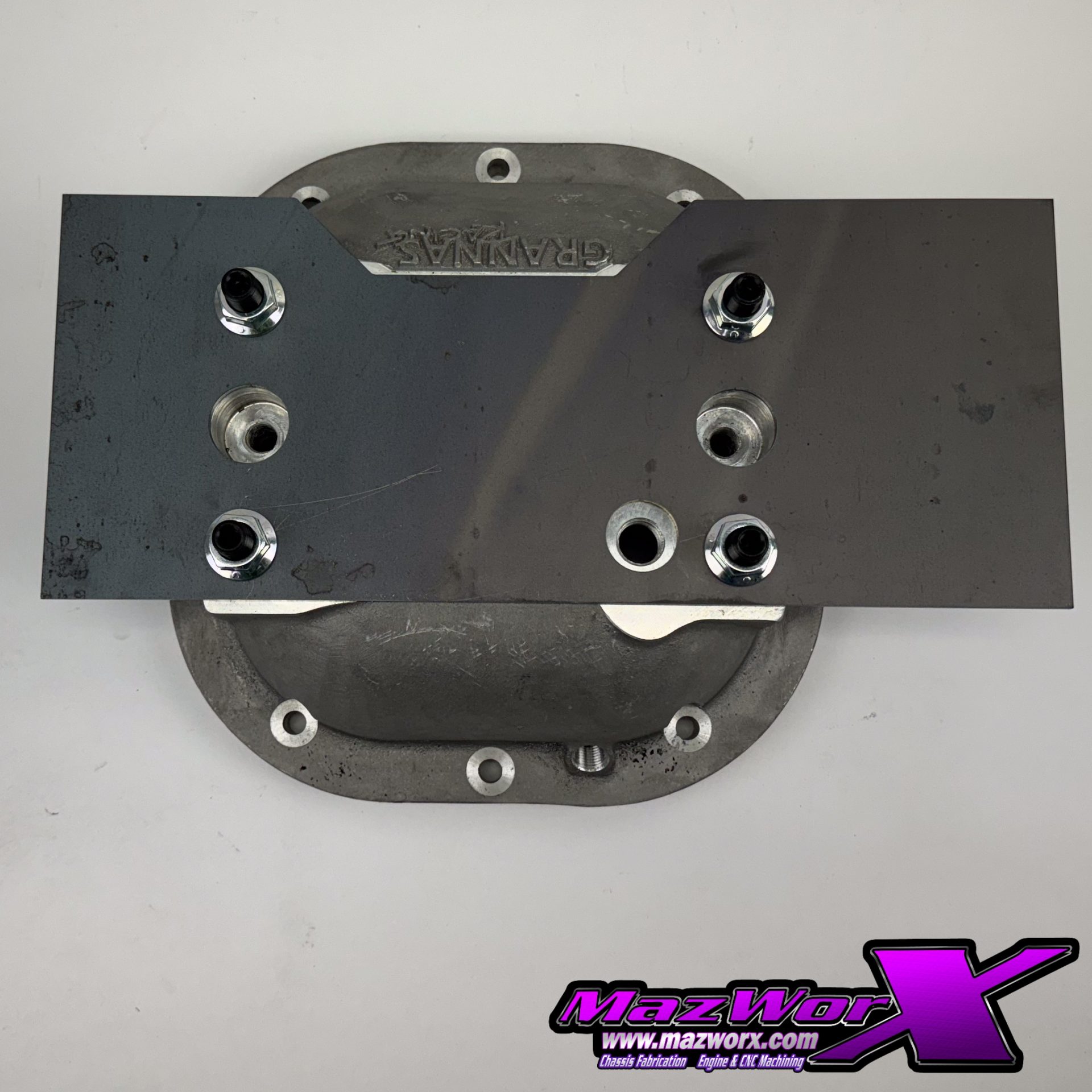

Grannas Rear Diff Cover
Solid Aluminum Diff Bushings
Hardware

Customer must use:

07-10 Ford Explorer 8.8 Diff (comes 28 spline, 3.55 ratio)

Q45 or Z32 TT rear hubs (32 spline)

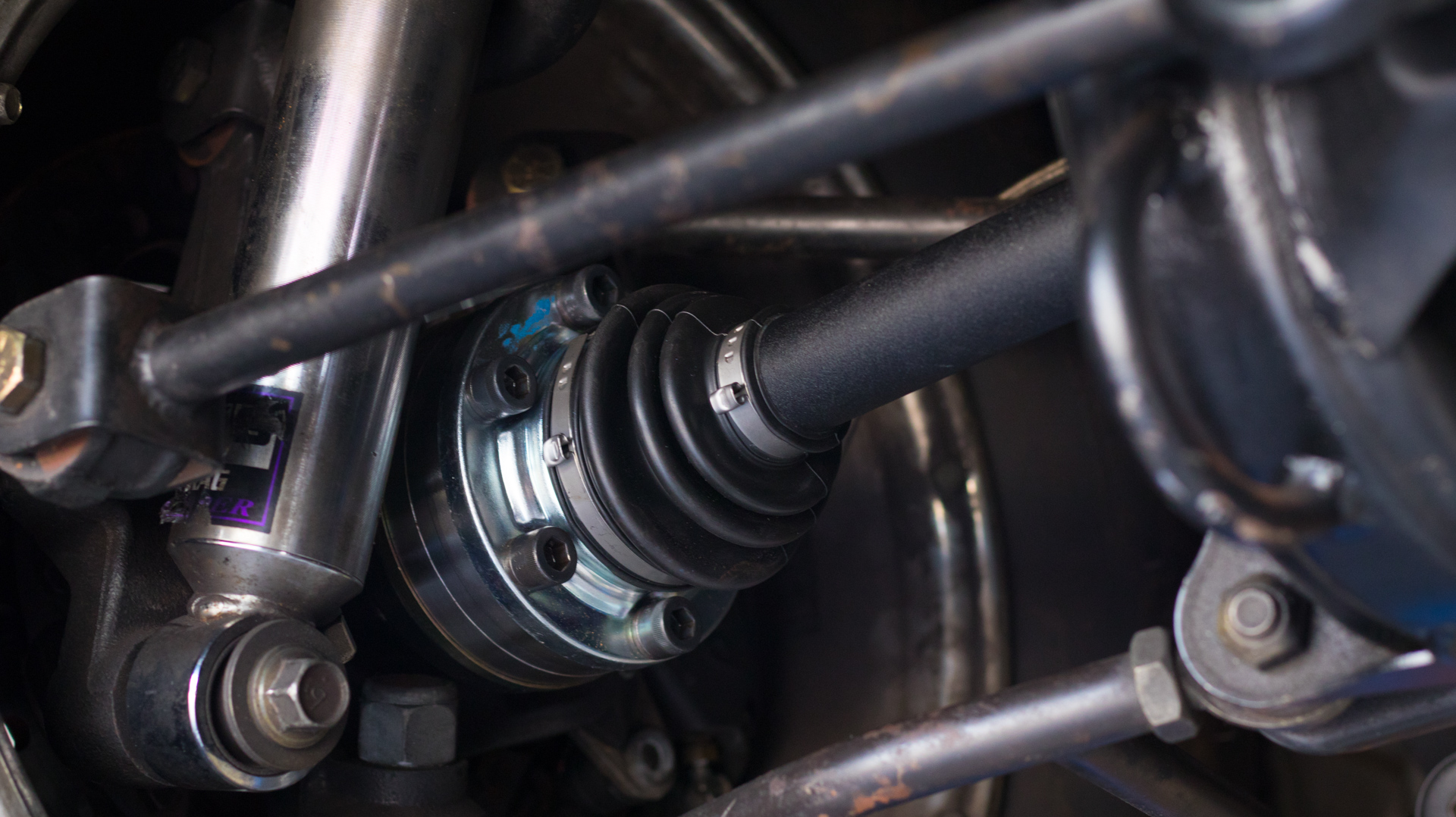

Axle kits are optional. The level 5 kit comes with 31 spline inners and 32 spline outers and is recommended for drag race applications. If changing to a spool, use a Strange unit. Spool will need additional machine work to fit.

Fabrication Pictures

We also offer fabrications service.  See as an additional item.
