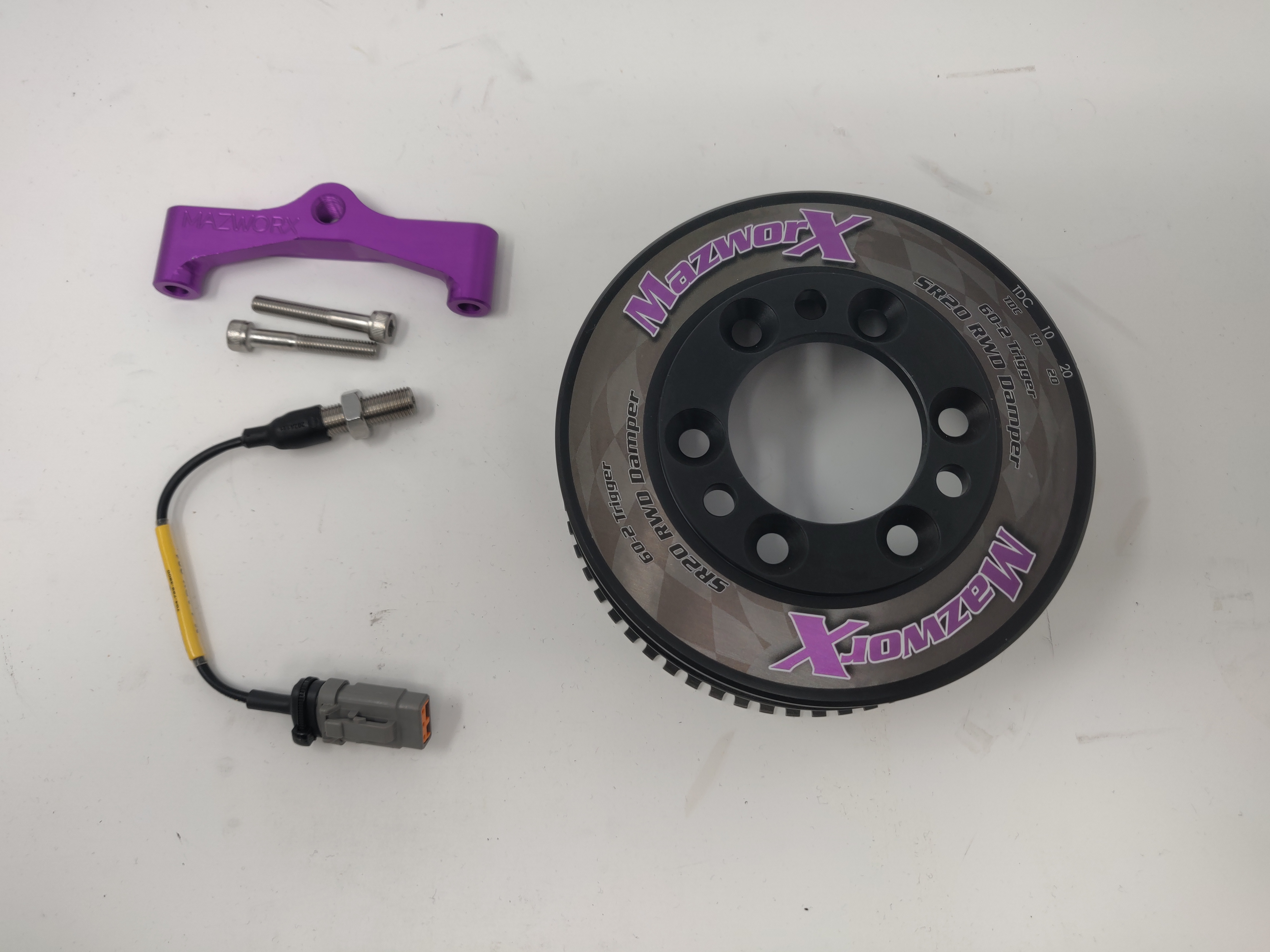

Mazworx SR20 60-2 Crank Only Sensor Kit for RWD ATI

The Mazworx SR20 60-2 Crank Only Sensor Kit for RWD ATI is engineered to provide exceptional timing precision essential for high-performance applications. Traditional timing approaches that rely solely on the camshaft can introduce timing inaccuracies. This kit addresses that limitation by utilizing a 60-2 crank trigger, delivering superior timing accuracy, which is especially critical for engines producing over 2000 horsepower.

Key Features

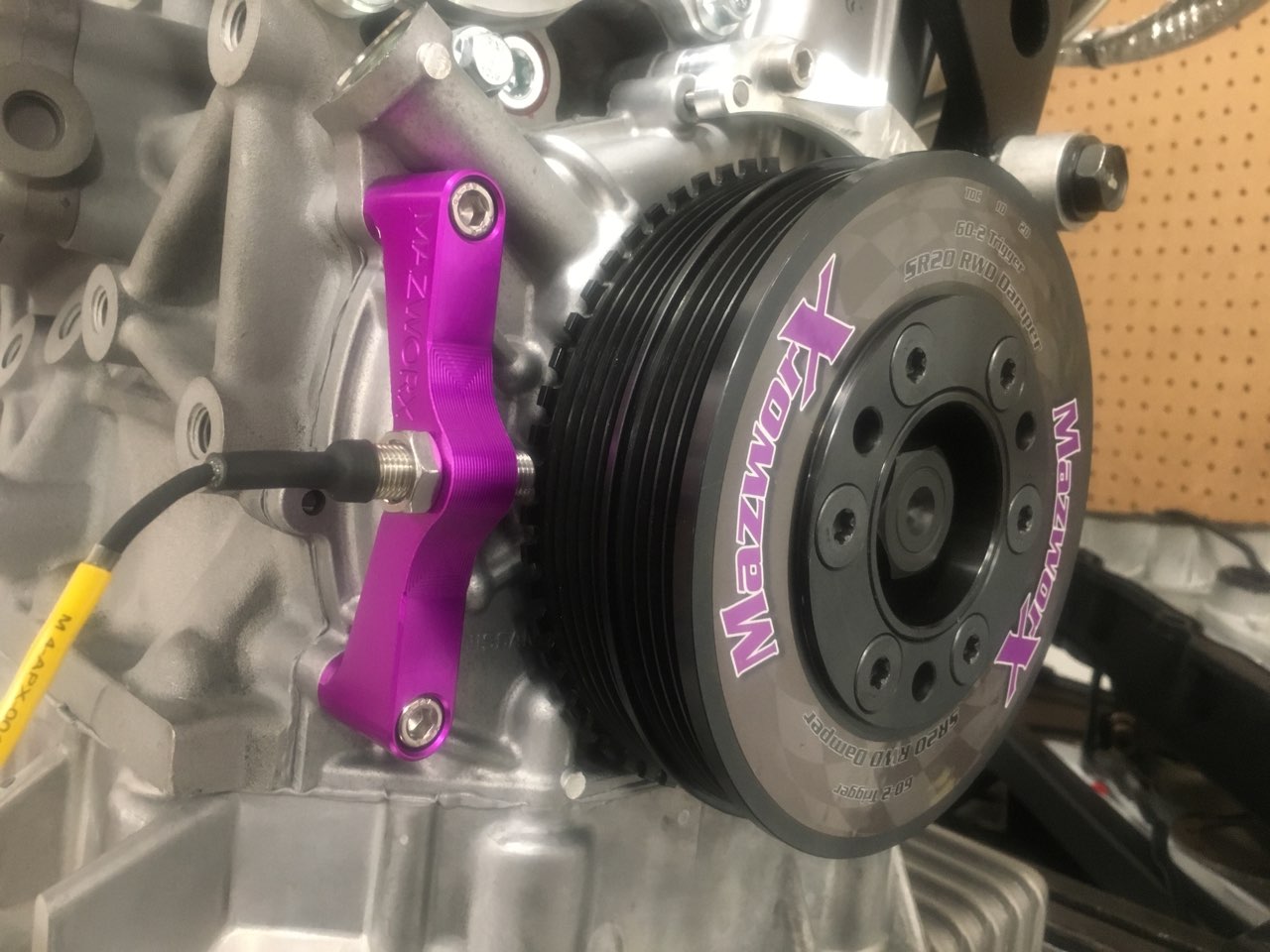

• 60-2 tooth crank trigger integrated into the outer shell of the ATI pulley.
• Enables precise timing for batch fire injection or can complement an existing camshaft pickup for sequential injection setups.
• Options available include “Outer Shell Only” for users with the ATI pulley 918582, or “Complete Damper VE” for a ready-to-install assembled damper.
• Complete damper version is pre-machined for the VE oil pump, requiring use of either the VE collar or the DET collar with spacer.
• Includes a MoTeC magnetic crank sensor designed specifically for this setup.
• Compatible exclusively with the ATI SR20 RWD pulley, supporting both VE and DET front covers.
• Complete damper option comes equipped with a power steering pulley.

Compatibility and Installation Notes

This sensor kit is designed for Nissan SR20 engines fitted in S13, S14, and S15 chassis configurations, optimizing performance for rear-wheel-drive setups. It is crucial to use a VE oil collar as the shorter DET/DE collar is not compatible with this system.

Choosing the right version depends on your current components:
– If you already have the ATI pulley 918582, select the “Outer Shell Only” option to integrate the 60-2 trigger.
– If you require a new damper, the “Complete Damper VE” option provides a fully machined assembly for straightforward installation.

Experience precise ignition timing and enhanced engine performance with the Mazworx SR20 60-2 Crank Only Sensor Kit, trusted by racing teams and high-horsepower builds alike.
