Mazworx SR20 FWD 36-2 Crank Only Sensor Kit

For enthusiasts and professionals seeking precise timing control, the Mazworx SR20 FWD 36-2 Crank Only Sensor Kit offers a robust solution designed specifically for Nissan SR20 engines in front-wheel-drive (FWD) and all-wheel-drive (AWD) setups.

Enhanced Timing Accuracy

Traditional cam-based timing systems can introduce inaccuracies. This kit employs a 36-2 tooth pattern cut into an ATI pulley, providing significantly improved resolution over standard crank angle sensor (CAS) cam triggers. While a 60-2 crank trigger offers the highest timing precision, the FWD pulley’s smaller diameter restricts this option, making the 36-2 pattern the optimal choice for these applications.

Quality Components

• ATI Pulley: Supplied with machining to the 36-2 tooth configuration. Customers with an existing ATI pulley can choose the machining service upon ordering.
• Crank Sensor: Equipped with a MoTeC Magnetic sensor, known for reliability and accuracy.

Compatibility and Configuration

• Designed exclusively for FWD and AWD engine configurations using the SR20 engine code.
• Not compatible with engines equipped with a GTi-R (54C) oil pump due to pulley fitment differences.
• Requires either a VE (or 54C) oil collar or a DE oil collar combined with an oil collar spacer to ensure proper installation.

Additional Information

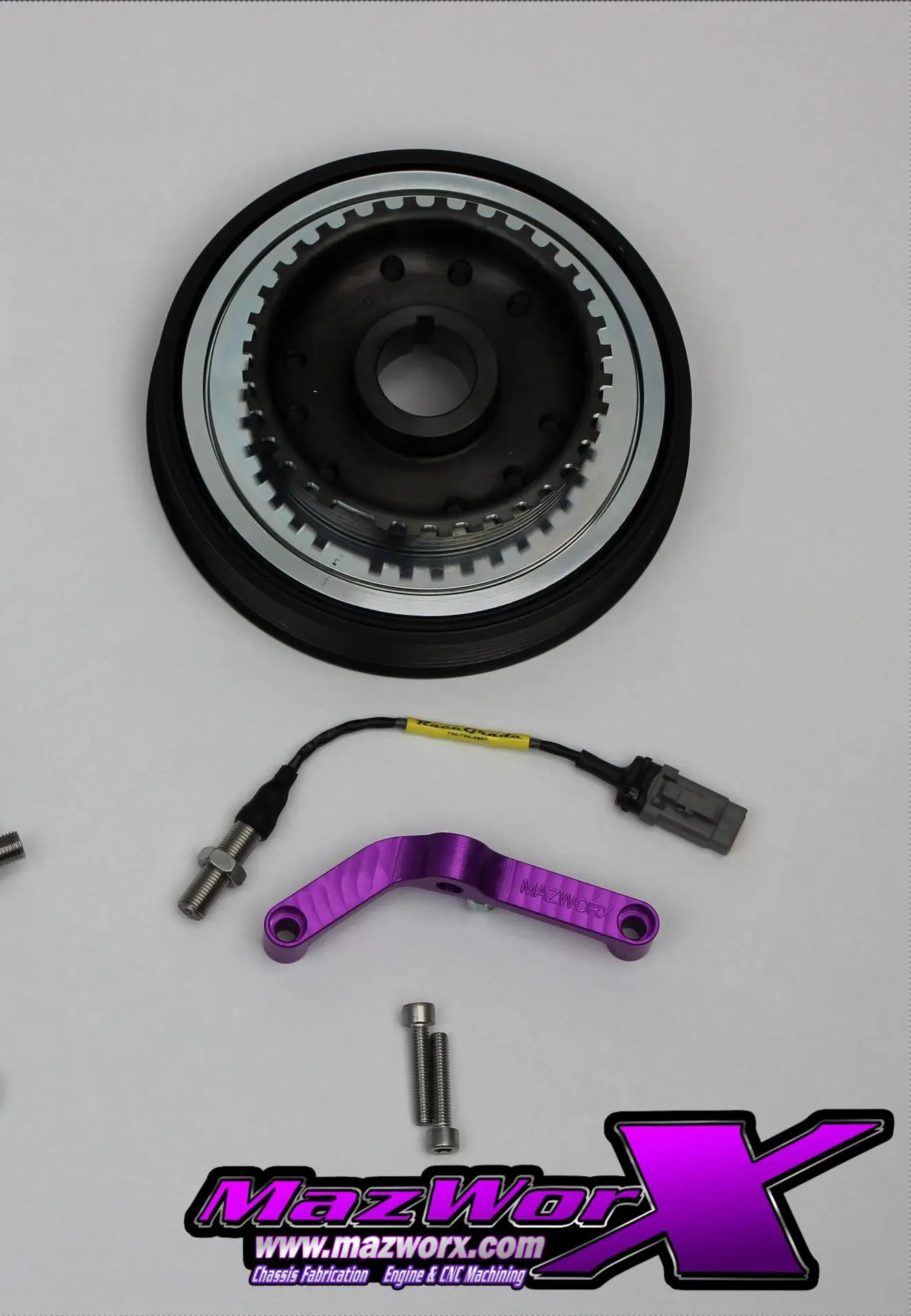

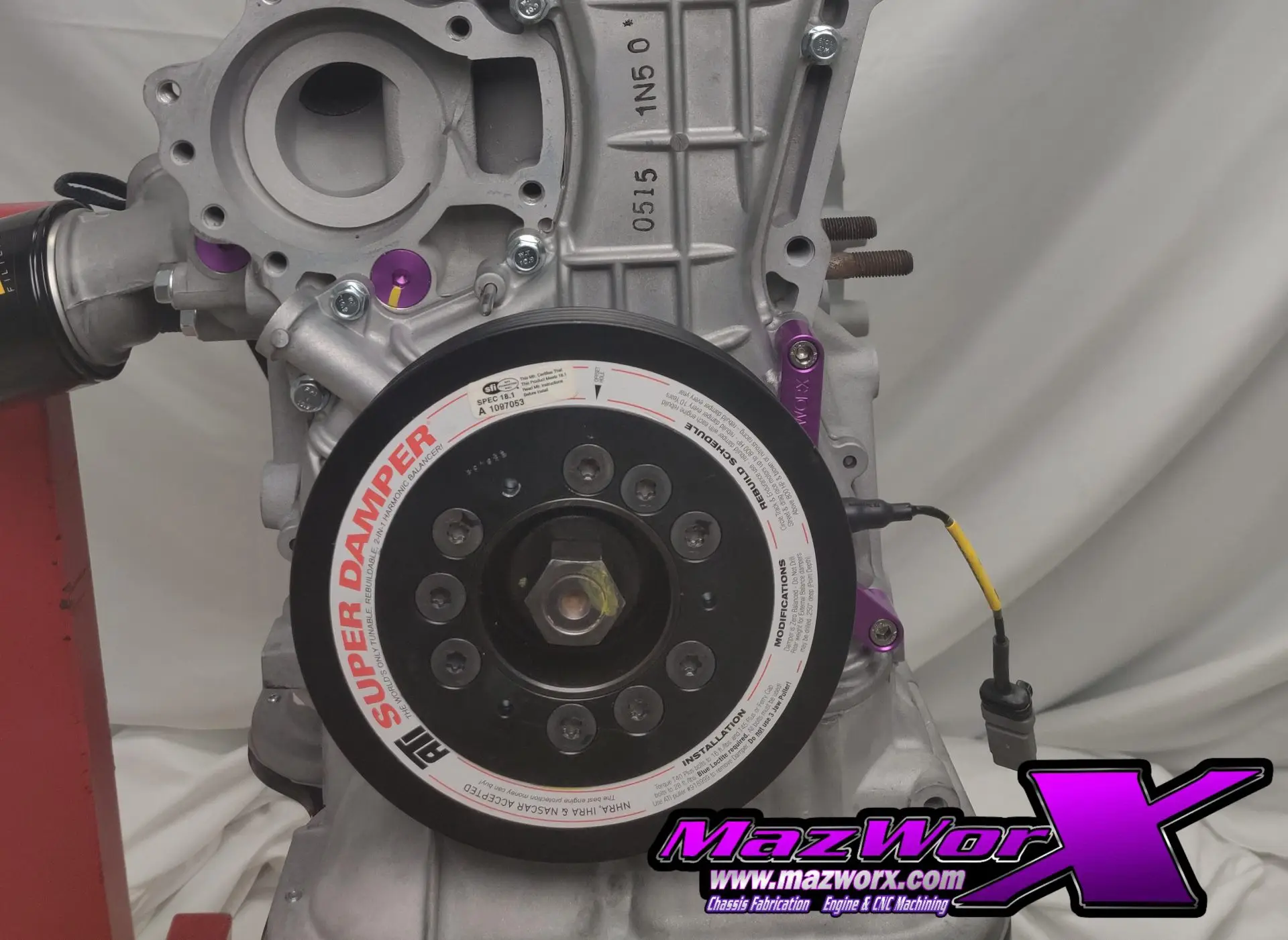

Product images depict the Street Damper variant, which includes multiple pulleys. The Race Damper option contains only the rear small pulley.

This sensor kit is developed from race team insights at power levels exceeding 2000 horsepower, ensuring precision and durability under extreme conditions.
