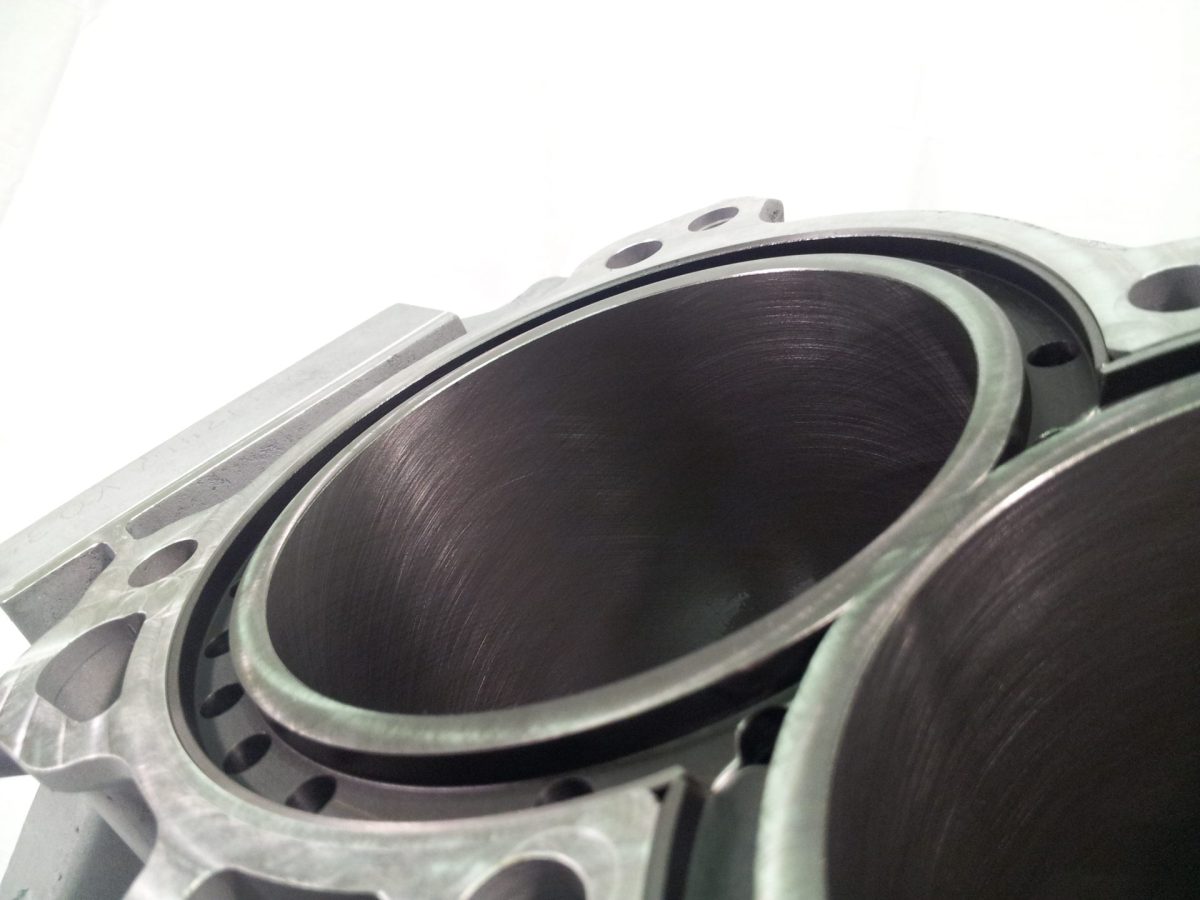

Mazworx VQ35DE Block Stage 2

The Mazworx VQ35DE Block Stage 2 is a meticulously prepped Nissan VQ35 engine block, ready for high-performance assembly. Utilizing advanced CNC machinery and precision equipment, this sleeved block undergoes extensive machining to ensure optimal performance and reliability.

Key Preparation Steps Include

• Comprehensive hot tank cleaning
• Professional sand blasting to remove corrosion, restoring a uniform satin aluminum finish
• Removal and replacement of all freeze plugs, oil passage plugs, and transmission dowel pins with supplied parts
• Installation of durable Darton MID sleeves made of ductile iron, capable of supporting over 1000hp
• Precision bore and honing performed with a torque plate to maintain cylinder roundness under simulated cylinder head clamping
• Step decking to create a taller sleeve deck surface that improves head gasket sealing under high boost conditions
• Line boring of the main journals with options for ARP main studs or billet main caps with 1\/2″ studs to suit your power and strength requirements

Additional Details

• Core Options: Choose to send in your block or purchase a core if available. Work begins once your core block arrives.
• Bore Sizes: Select from multiple bore sizes ranging from 95.5mm to 100.0mm, all bored on a 3-axis CNC machine to ensure perfectly centered cylinders. Final honing uses the Sunnen SV-10 cylinder hone with diamond tooling for superior surface finish.
• Sleeves: Old sleeves are precisely removed and replaced with Darton MID sleeves, installed using CNC machining processes including step decking for enhanced sealing and strength.
• Surfacing: Step decking performed on a 3-axis CNC machine raises the sleeve surface above the block deck to concentrate clamping forces and improve head gasket performance.
• Main Studs, Caps, and Line Boring: Options include no hardware upgrade, ARP main studs with line boring, or billet main caps with 1/2″ studs and line boring. All line boring processes begin with cap grinding followed by precision boring to factory specifications using custom tooling.

This Stage 2 block prep ensures a robust foundation for building a high-performance Nissan VQ35DE engine capable of meeting demanding racing and power goals.
