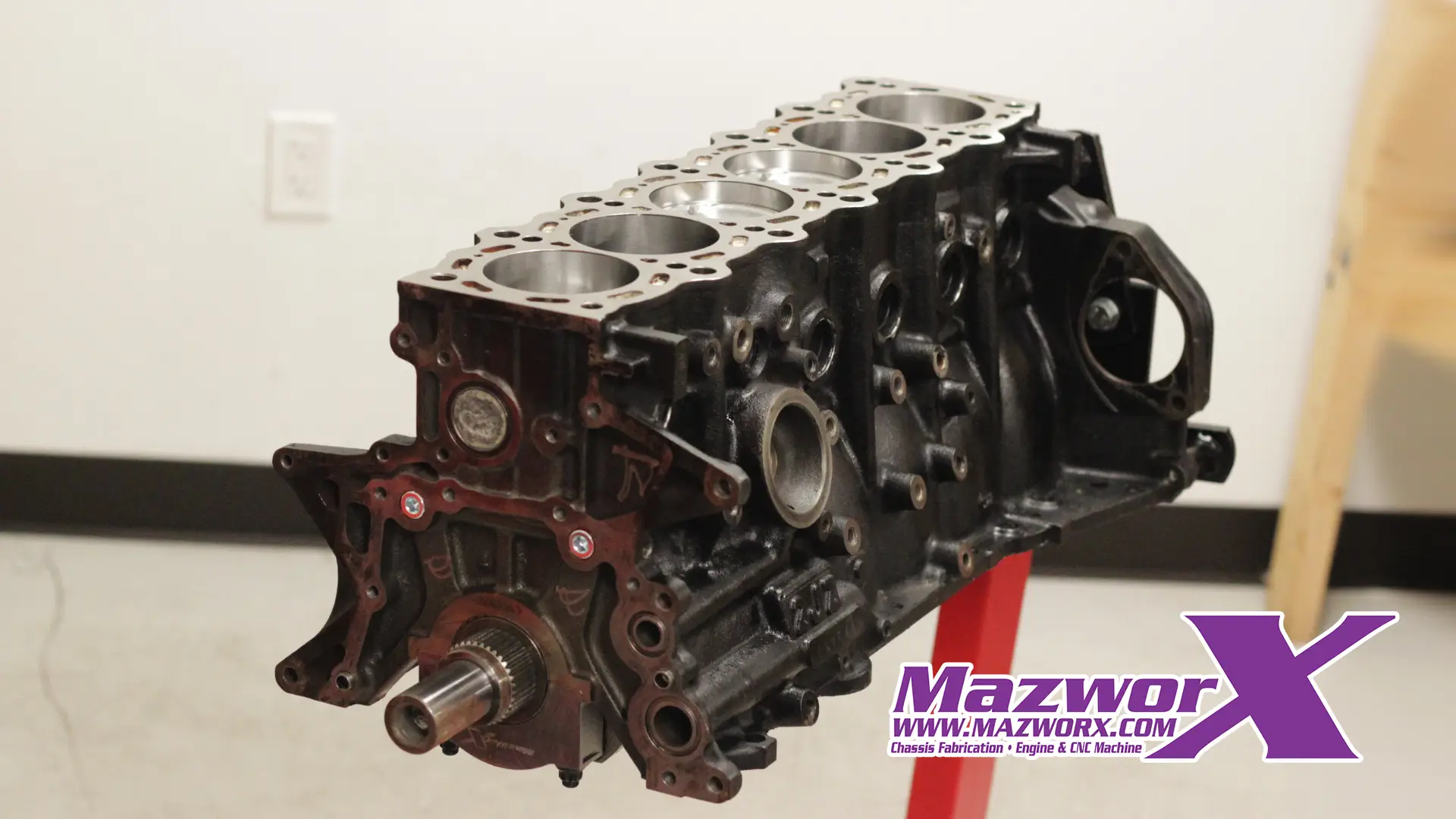

Mazworx 2JZ-GTE Stage 2 Short Block

The Mazworx Stage 2 2JZ-GTE Short Block is meticulously assembled using high-quality components and extensive precision machining to deliver a robust foundation for enhanced engine performance.

Key Features

• CP Pistons, sized at 86.5mm with a 9.0:1 compression ratio, featuring upgraded .200″ wall wrist pins for increased durability.
• Manley Turbo Tuff connecting rods for improved strength and reliability under boost.
• ACL race-grade bearings designed for high-performance applications.
• Mazworx billet main caps for enhanced block rigidity.
• ARP main studs providing superior fastening strength.
• Mazworx threaded O-ring oil galley plugs and freeze plugs ensuring leak-free sealing.

Comprehensive Labor Process

• Complete disassembly of the short block.
• Thorough hot tank cleaning to remove contaminants.
• Wire wheel preparation and painting of the iron block.
• Machining for installation of threaded oil galley and freeze plugs.
• Inline resurfacing of the block for optimal sealing.
• Precision resizing of cylinders using torque plates for accurate bore alignment.
• Line bore resizing to ensure main bearing alignment.
• Crankshaft cleaning, inspection, polishing, and balancing for smooth operation.
• Careful assembly of the short block to final specifications.

Available Option

• 2JZ-GE to GTE conversion package, which includes specialized machining and installation of oil squirters to accommodate the GTE configuration.

Note: A core short block is required for building this Stage 2 assembly.
