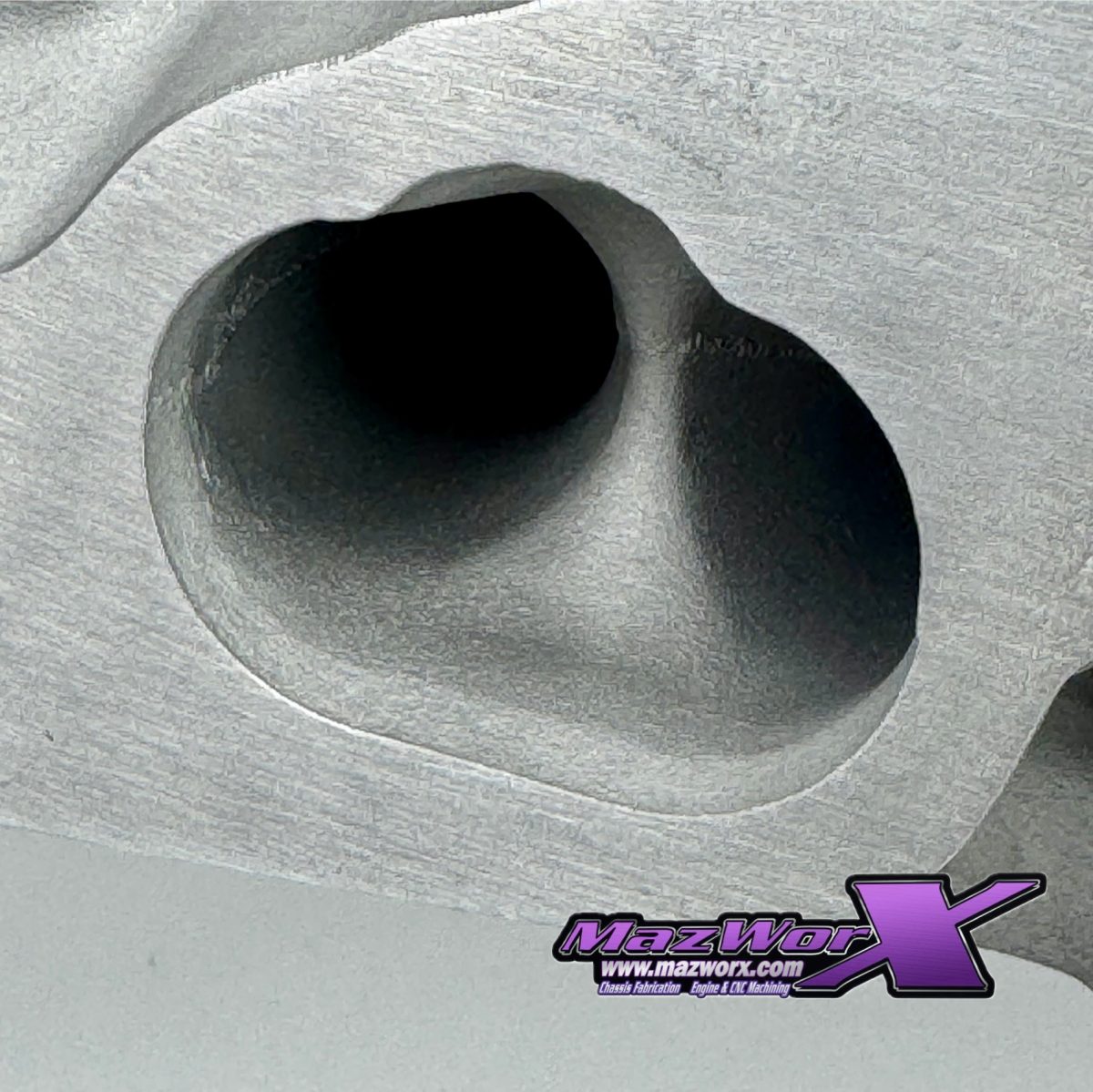

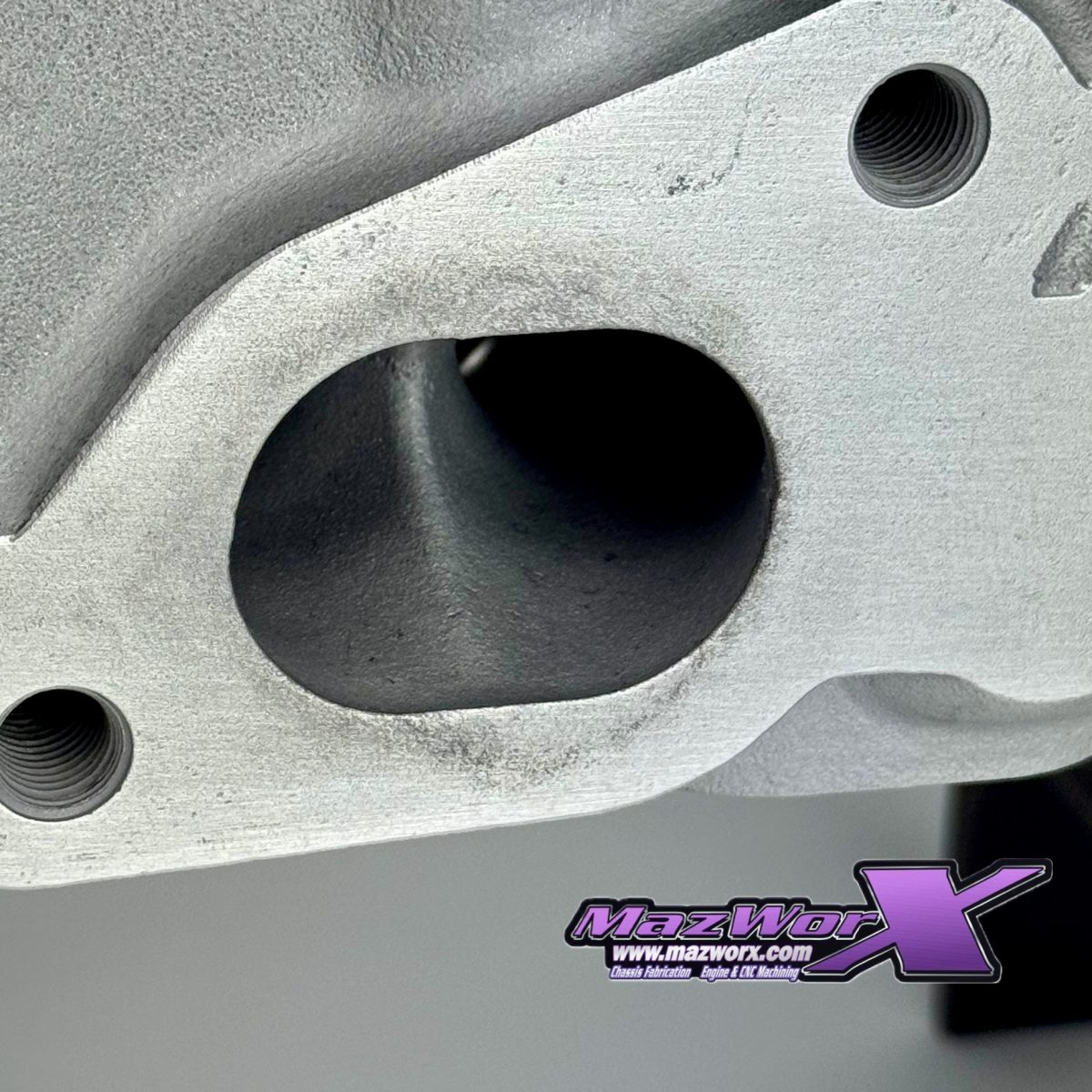

Mazworx SR20DET Stage 0.5 Cylinder Head

The Mazworx SR20DET Stage 0.5 Cylinder Head is meticulously built using advanced CNC machining and state-of-the-art equipment to ensure precise and reliable performance. Each cylinder head is crafted to your specifications, delivering a ready-to-bolt-on unit that meets high standards of quality and durability.

Comprehensive Build Process

Every head starts with an intensive cleaning and refurbishment process to restore and enhance its condition:

• Hot Tank Cleaning: Thoroughly removes oil, grime, and contaminants to prepare the head for further work.
• Sand Blasting: Eliminates corrosion and debris, reveals a uniform satin aluminum finish, and improves the overall aesthetic appearance.
• Remove, Rethread, and Reinstall Oil Port and Freeze Plugs: Ensures clean oil passages and replaces aged freeze plugs for optimal sealing.
• Remove, Ream, and Replace Valve Guides: Installs high-quality Supertech bronze valve guides, correcting typical wear found in older DET heads on both intake and exhaust sides.

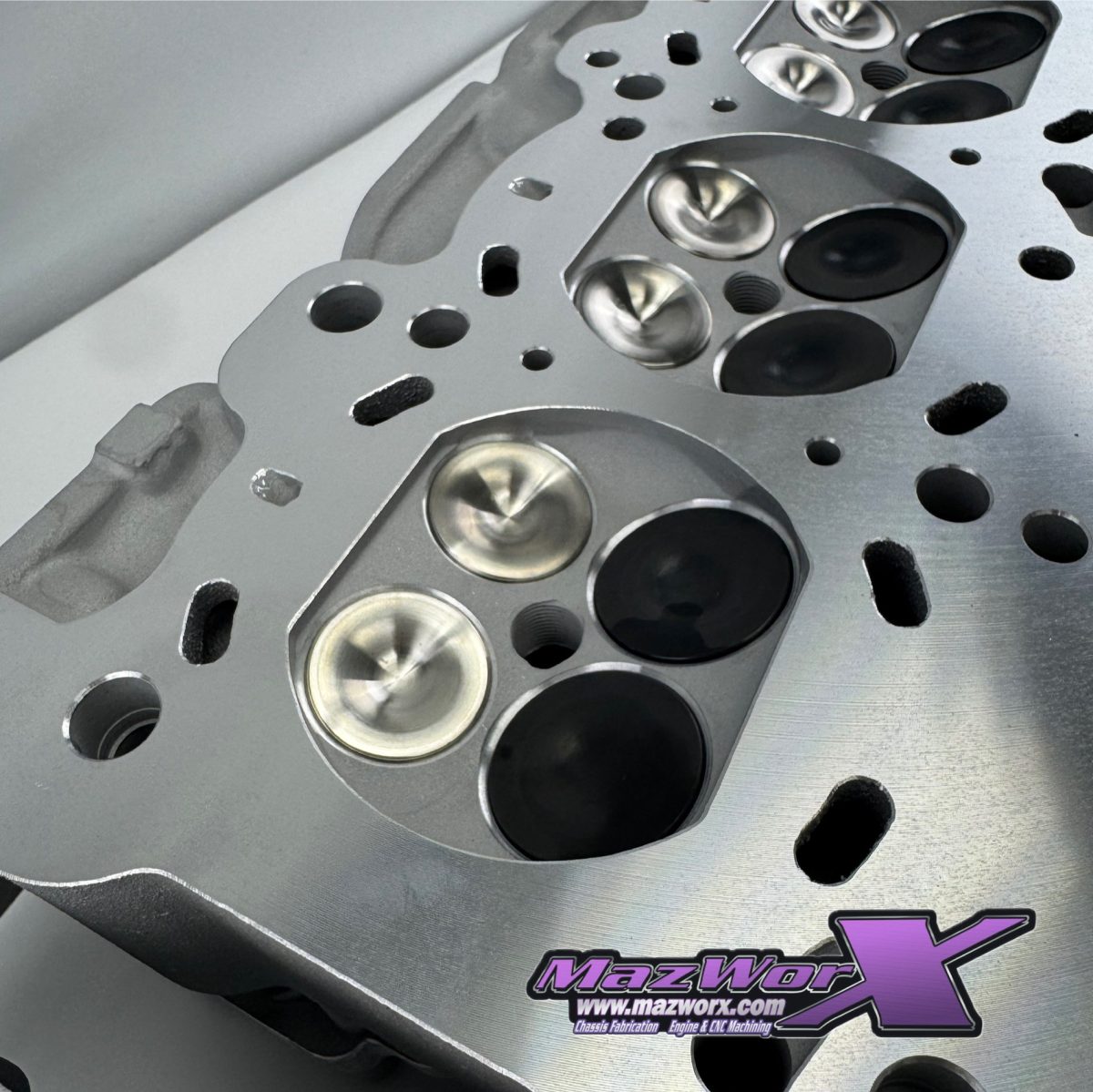

• Multi-Angle Valve Job Upgrade: Enhances valve seat profiles by cutting multiple angles and a radius, improving airflow through the 90mm combustion chamber.
• Surfacing: Resurfaces the head with a poly-crystalline diamond (PCD) tool to ensure a perfectly flat and smooth sealing surface.
• Replace Valve Seals: Installs new Viton valve seals to prevent oil leakage and improve valve performance.
• Assembly: Carefully installs valves, springs, and retainers.
• Set Rocker Level: Adjusts rocker levels to the cam using your existing guides and shims to achieve precise valvetrain setup.

Included Components

• Supertech Standard Size Intake Valves
• Supertech Standard Size Inconel Exhaust Valves
• Supertech Bronze Valve Guides
• Viton Valve Seals
• Oil Port Pipe Plugs
• Freeze Plugs

Designed specifically for Nissan SR20 engines found in S13, S14, and S15 chassis, this cylinder head refurbishment and upgrade provides a solid foundation for your racing or high-performance build. The combination of modern finishes, precision machining, and premium components ensures enhanced reliability and performance for your SR20DET engine.
